End-to-end commercial piping solutions up to 4”

Our promise to you is that we’ll never stop innovating to meet your needs. That means fittings and valves in large diameter sizing, three unique sealing element options and more approved applications than any manufacturer in the business.

Are you ready to start saving up to 90% on install time?*

Connect with an Expert

End-to-end
commercial piping

Our promise to you is that we’ll never stop innovating to meet your needs. That means fittings and valves in large diameter sizing, three unique sealing element options and more approved applications than any manufacturer in the business.

Are you ready to start saving up to 90% on install time?*

Connect with an Expert

Segments Served

Hospitality

From new builds to overnight repairs, Viega has the most complete suite of high-quality press fittings, valves and transition couplings to meet all your buildings’ needs.

Healthcare

Healthcare facilities are no place for open flames. Our fittings and valves allow you to make secure connections overhead or in tight spaces without the use of dangerous combustibles.

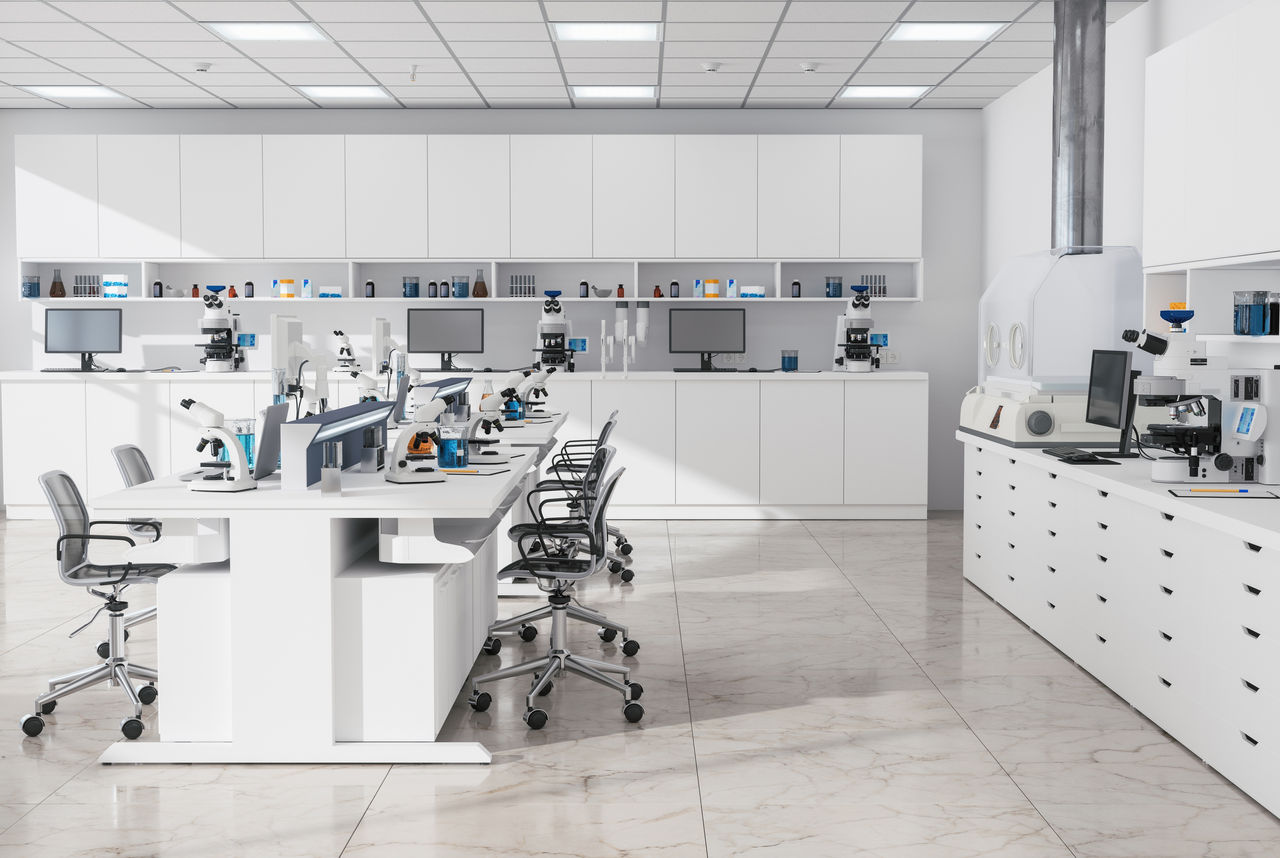

Education

From lecture halls to dorm rooms, Viega fittings and valves do the job behind the wall to keep the learning moving forward. We can even handle the unique gases running through your science labs.

Multi-Family

Whether you’re looking to outfit an entire building or just a single unit, Viega press fittings are easy to install and allow various approaches. Select from trunk and branch, sub-manifolds or home run maniblock systems; you can choose the one that causes the least disruption to your supply.

Hospitality
Healthcare
Education
Multi-Family

Hospitality

From new builds to overnight repairs, Viega has the most complete suite of high-quality press fittings, valves and transition couplings to meet all your buildings’ needs.

Healthcare

Healthcare facilities are no place for open flames. Our fittings and valves allow you to make secure connections overhead or in tight spaces without the use of dangerous combustibles.

Education

From lecture halls to dorm rooms, Viega fittings and valves do the job behind the wall to keep the learning moving forward. We can even handle the unique gases running through your science labs.

Multi-Family

Whether you’re looking to outfit an entire building or just a single unit, Viega press fittings are easy to install and allow various approaches. Select from trunk and branch, sub-manifolds or home run maniblock systems; you can choose the one that causes the least disruption to your supply.

No time for down time.

Our singular focus is on keeping your facility up and running. That’s why we make our fittings and valves from superior materials.

It’s why we expanded our ProPress and MegaPress lines to include more configurations than anyone up to 4”. And it’s why Viega is the only press fitting in the industry to meet the highest seismic approval in the country.

No time for down time.

Our singular focus is on keeping your facility up and running. That’s why we make our fittings and valves from superior materials.

It’s why we expanded our ProPress and MegaPress lines to include more configurations than anyone up to 4”. And it’s why Viega is the only press fitting in the industry to meet the highest seismic approval in the country.

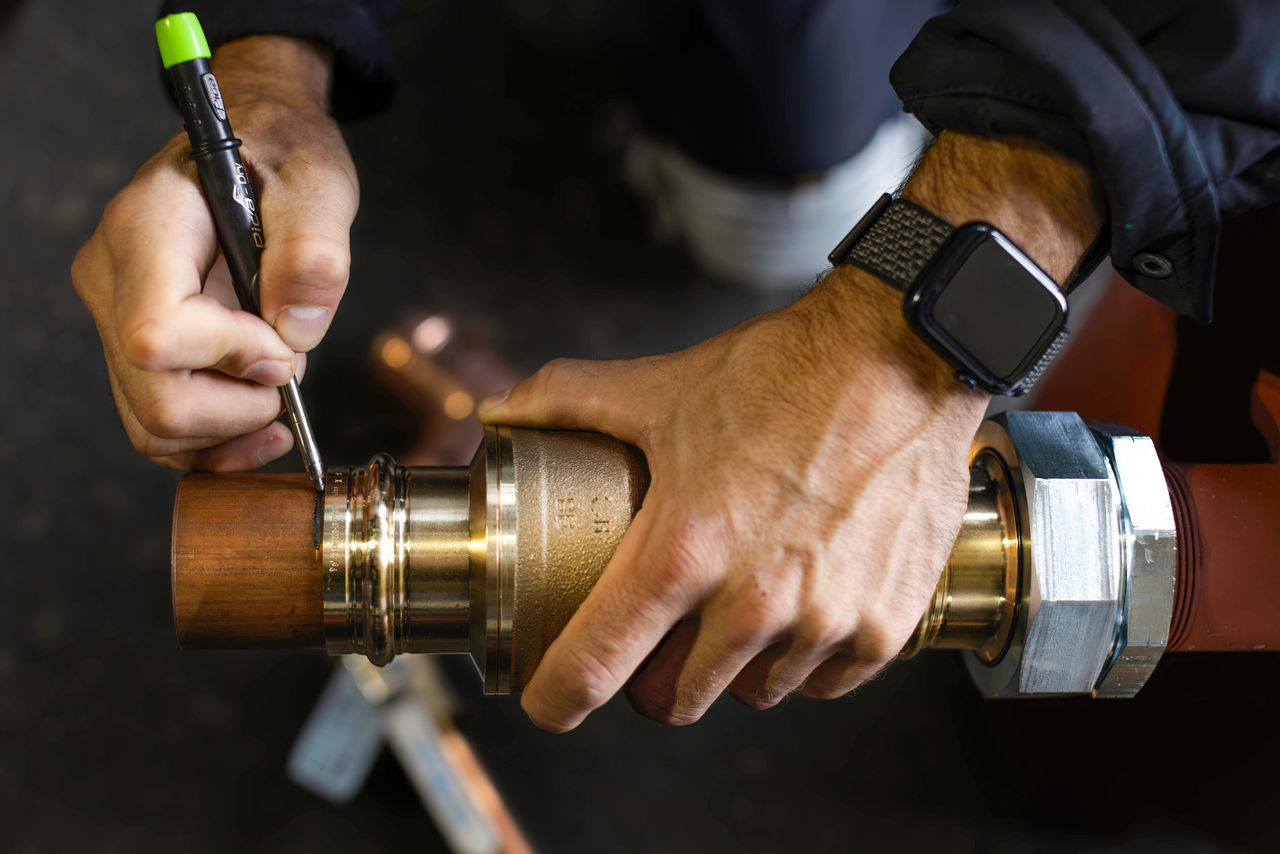

Benefits of Viega Press Technology

Eliminate Hot Work

Soldering and welding equipment is responsible for nearly 1,200 fires causing $150 million dollars in property damage*. Viega press fittings require no open flames or hot work permits.

Reliable + Quality Installation

Unlike grooved or threaded connections that reduce pipe wall thickness, Viega fittings preserve pipe integrity. All of our fittings come factory assembled for maximum consistency in the field.

Faster, Consistent Connections

A simple 11-joint assembly takes just under 11 minutes to press*. Compare that to more than two-and-a-half hours of welding and you’re talking about some serious cost savings.

Reduce Downtime

When unplanned downtime can cost hundreds of thousands of dollars every hour, you need a product that can get you up and running faster. Viega press fittings reduce install time by up to 90%.

End-to-End Solutions

One tool, three systems. From ½” all the way up to 4”, Viega offers a single, efficient solution for projects in the Healthcare, Hospitality, Education sectors and beyond.

Chemical Compatibility Submission

Approval of nonstandard applications requires chemical compatibility submission

Viega ProPress and MegaPress systems are approved for a wide variety of standard applications including: water, fuels, oils, lubricants, and gases.

They are also approved for more than 2,500 nonstandard applications including:

Potable Water Systems
Chilled Water Systems
Gas Systems
Hydronic Heating Systems
Radiant Heating/Snow Melt Systems
Patio Gas

Treated Water
Fire Sprinkler
Natural Gas
Low-Pressure Steam
Reverse Osmosis Water
Diesel Fuel

Commercial buildings require reliable connections. That’s why we subject our systems to the strictest quality and performance testing - including burst, vibration, fire, and seismic. We also work directly with our customers to provide unique solutions to modern challenges.

As a result, Viega press systems have earned a litany of certifications from governing bodies across the US and abroad.

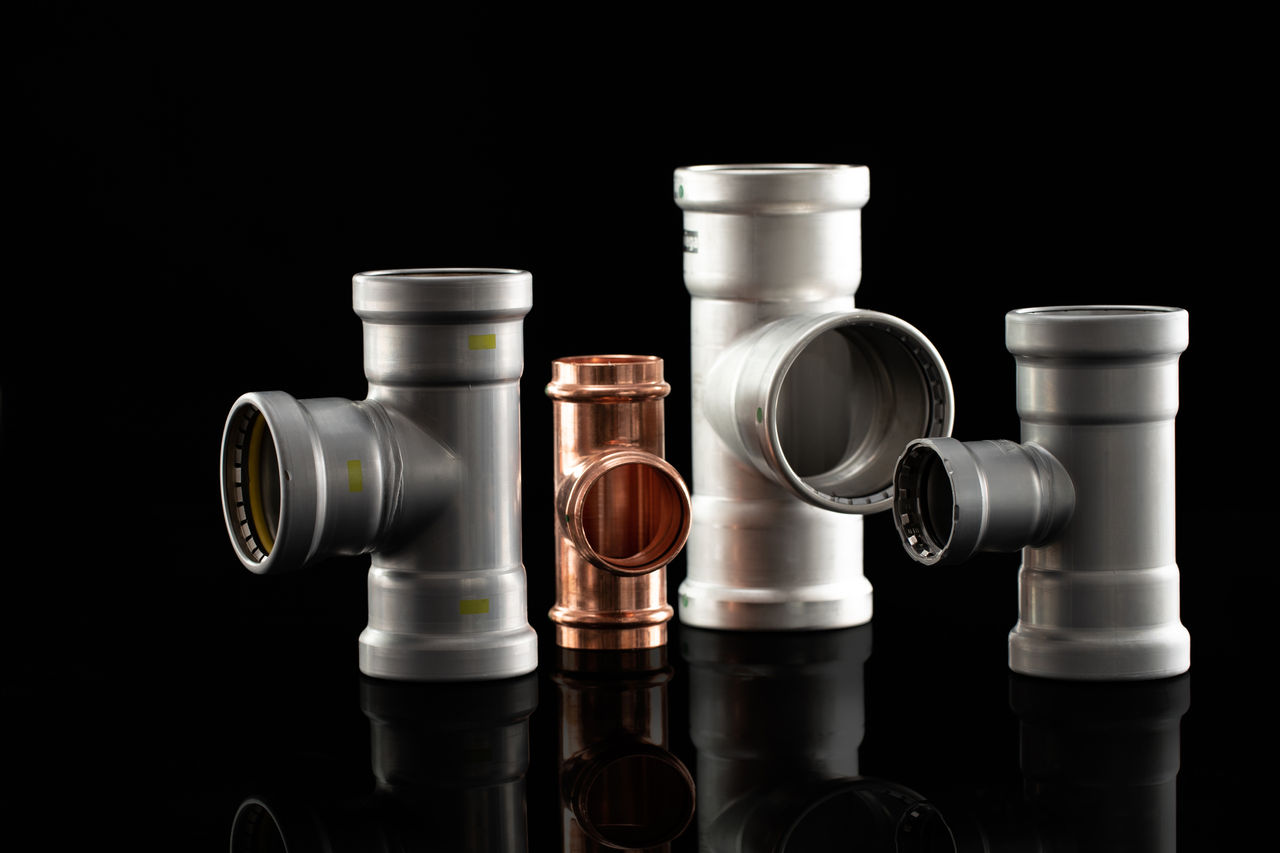

The Viega Difference

Our engineering is elite. Viega press fittings and valves are available with multiple sealing element options, patented grip rings and Smart Connect® Technology built in.

Behind our products stand the industry’s leading training, design and engineering services, field reps and customer service. It’s all included.

Learn More

The Viega Difference

Our engineering is elite. Viega press fittings and valves are available with multiple sealing element options, patented grip rings and Smart Connect® Technology built in.

Behind our products stand the industry’s leading training, design and engineering services, field reps and customer service. It’s all included.

Learn More

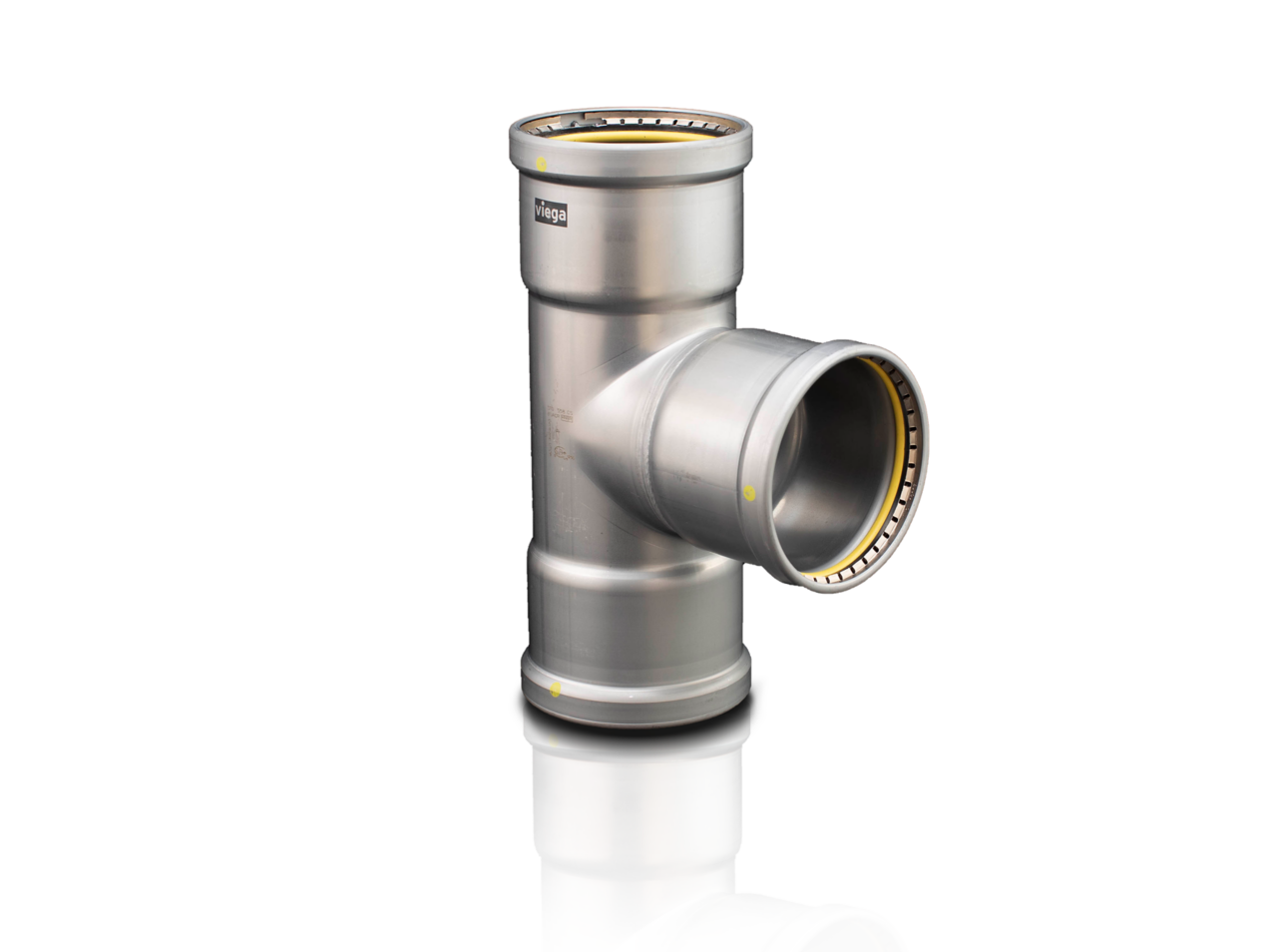

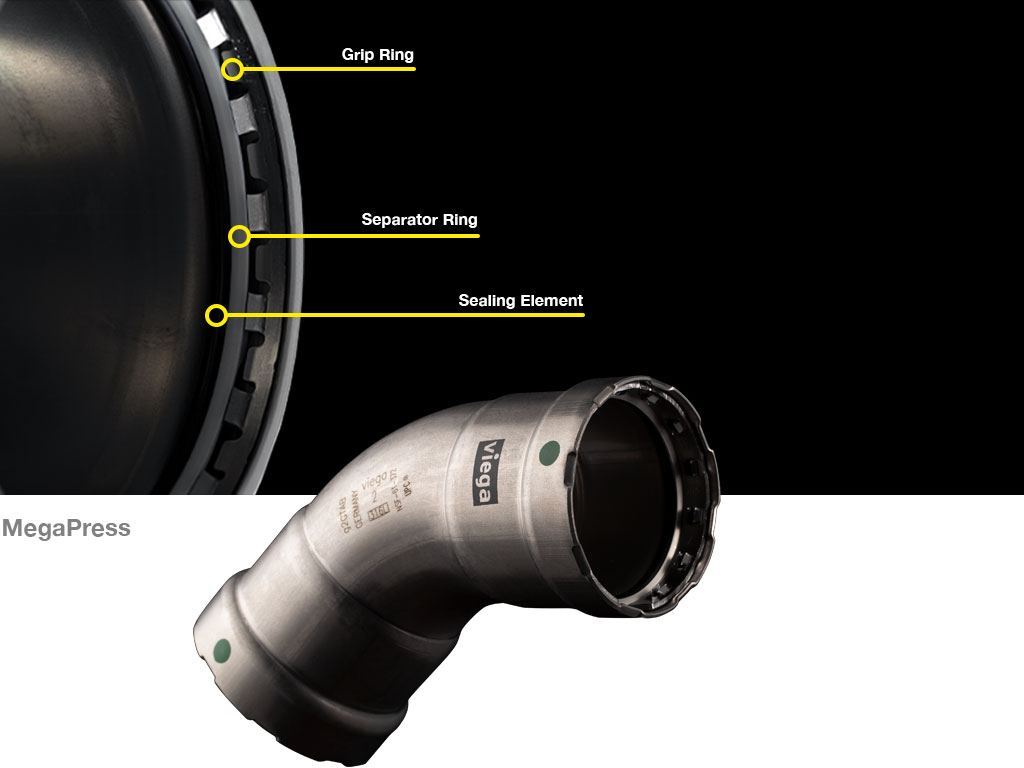

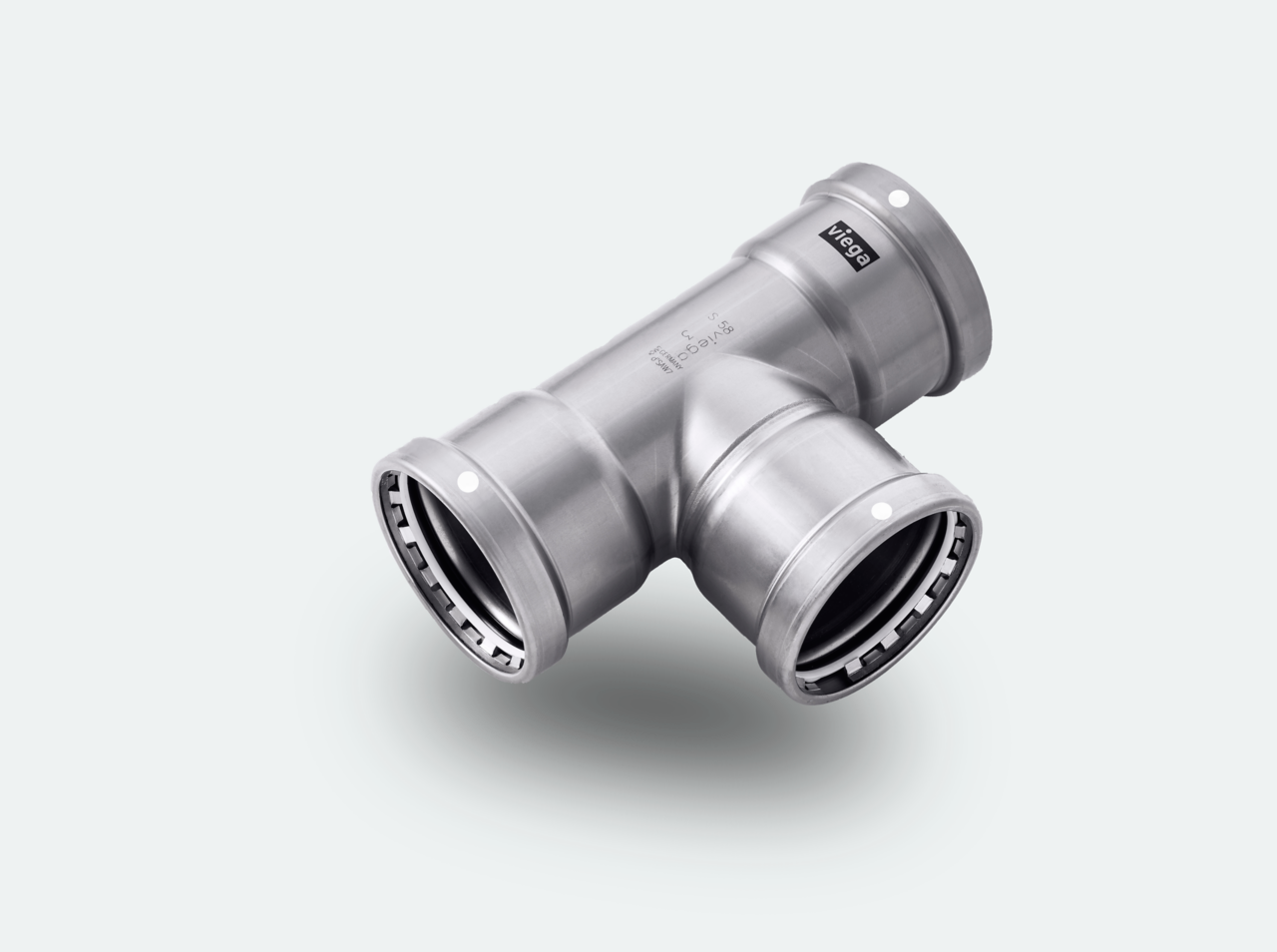

Viega MegaPress^®G

For use with Schedule 5 to Schedule 40 carbon steel pipe

Benefits

HNBR sealing element approved for use in gas and fuel oil applications
First fitting approved for connecting gas pipe up to 4"
Nearly 150 configurations from ½" to 4"
Approved for underground applications in accordance with code and local AHJ

Fuels/Oils/Lubricants

Mineral Oil
Lube Oil Petroleum based
Propane
Butane
Natural Gas  Primarily methane
Heating Fuel Oil
Diesel Fuel
Gear Oil Lubricant
Automatic Transmission Fluid
Hydraulic Oil
Engine Oil
Waste Oil

Gases

Compressed Air     Oil Concentration ≤25 mg/m
Compressed Air     Oil Concentration >25 mg/m
Nitrogen - N2
Carbon Dioxide - CO2    Dry
Argon - Ar
Ammonia Ammonia environment7
Hydrogen - H2
Acetylene     Test pressure 350 psi
Vacuum     Minimum absolute pressure Maximum differential pressure

For additional information, please see the approved applications chart. View Viega Approved Applications

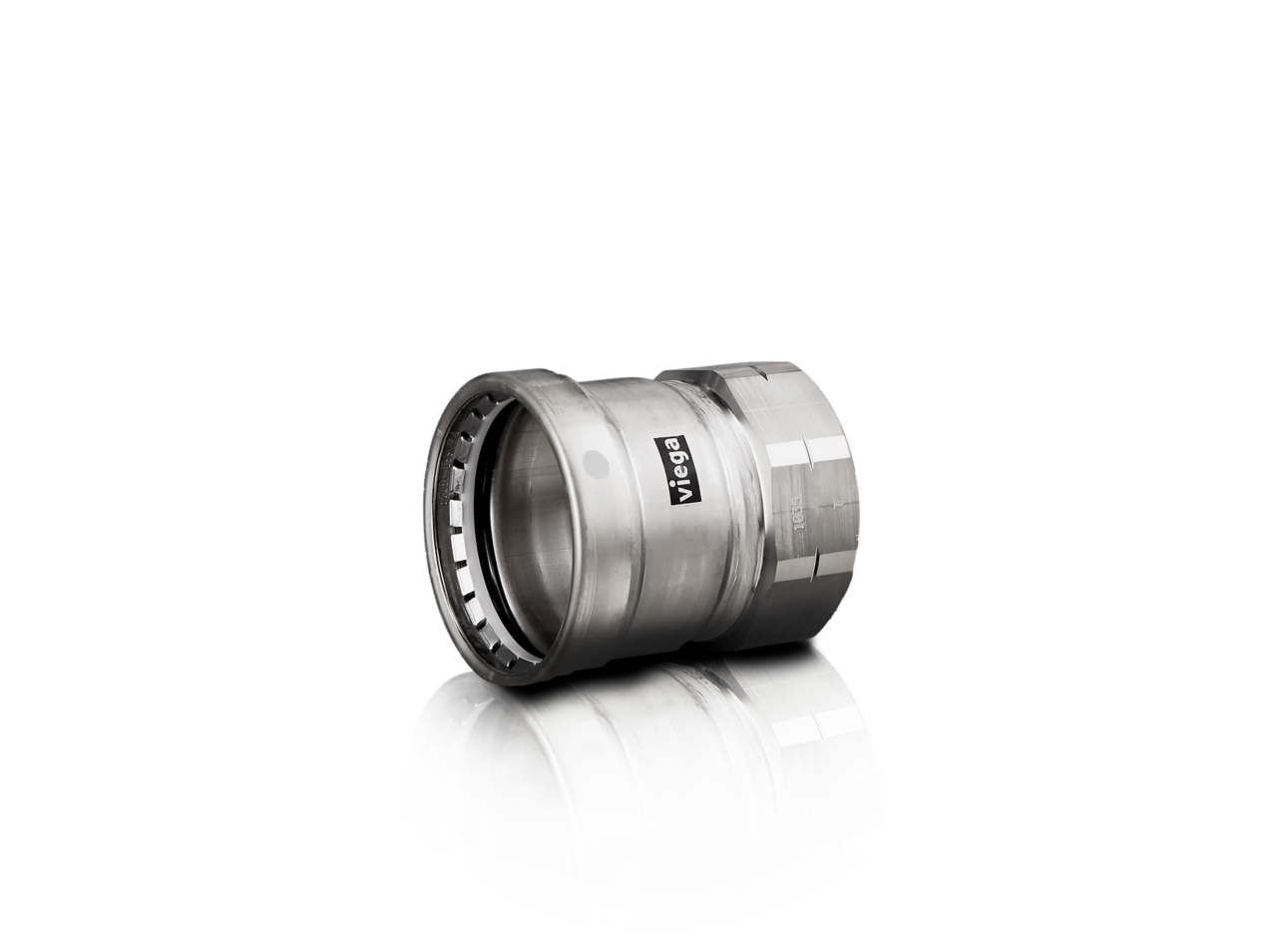

Viega MegaPress^® FKM

For use with Schedule 5 to Schedule 40 carbon steel pipe

Benefits

FKM sealing element allows for installation in higher temperature applications
More than 180 configurations from ½" to 4"
Approved for use in residential and low pressure steam, compressed air, fire protection and many fuel/oil applications

Water/Liquids

Chilled Water    ≤50% Ethylene / Propylene glycol
Hydronic Heating Water9    ≤50% Ethylene / Propylene glycol
Isopropyl Alcohol
Fire Sprinkler     NFPA 13, 13D, 13R
Steam Low-pressure
Steam Residential

Fuels/Oils/Lubricants

Mineral Oil
Lube Oil Petroleum based
Biodiesel ASTM D6751
Heating Fuel Oil
Diesel Fuel
Kerosene
Gear Oil Lubricant
Automatic Transmission Fluid
Hydraulic Oil
Engine Oil
Engine Coolant
Waste Oil

Gases

Compressed Air     Oil Concentration ≤25 mg/m
Compressed Air     Oil Concentration >25 mg/m
Nitrogen - N2
Carbon Dioxide - CO2    Dry
Argon - Ar
Ammonia Ammonia environment7
Hydrogen - H2
Acetylene     Test pressure 350 psi
Vacuum     Minimum absolute pressure Maximum differential pressure

For additional information, please see the approved applications chart. View Viega Approved Applications

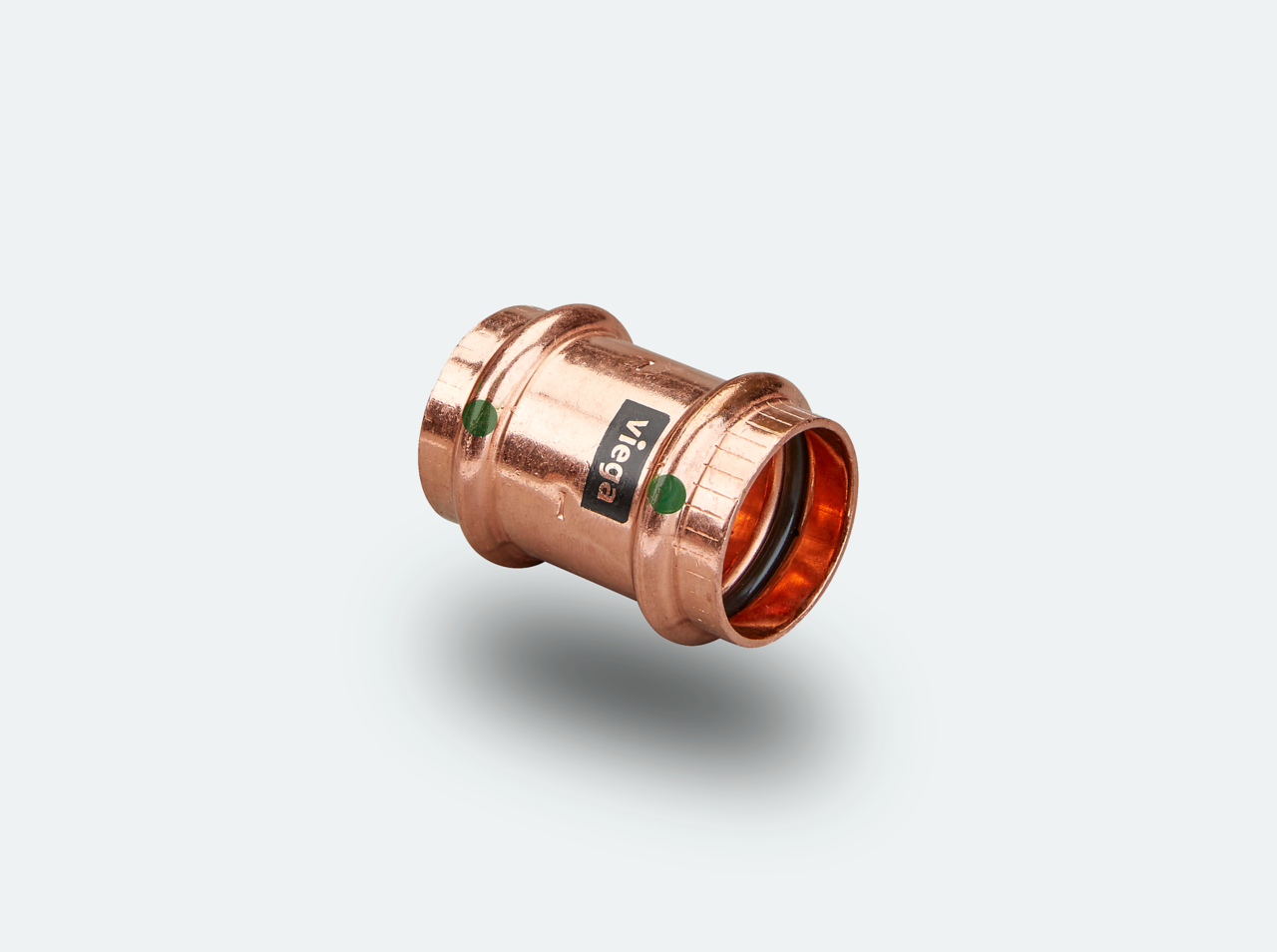

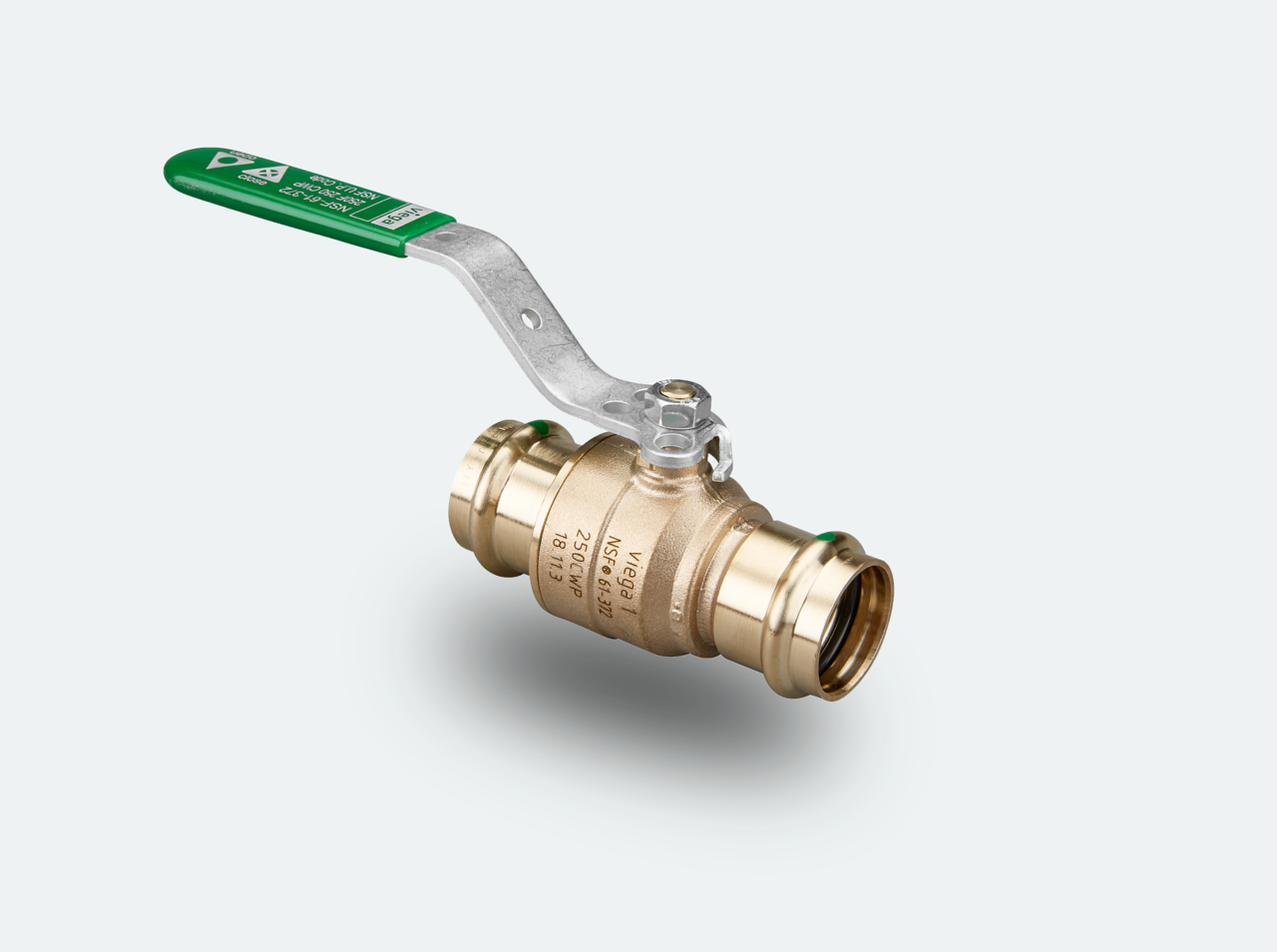

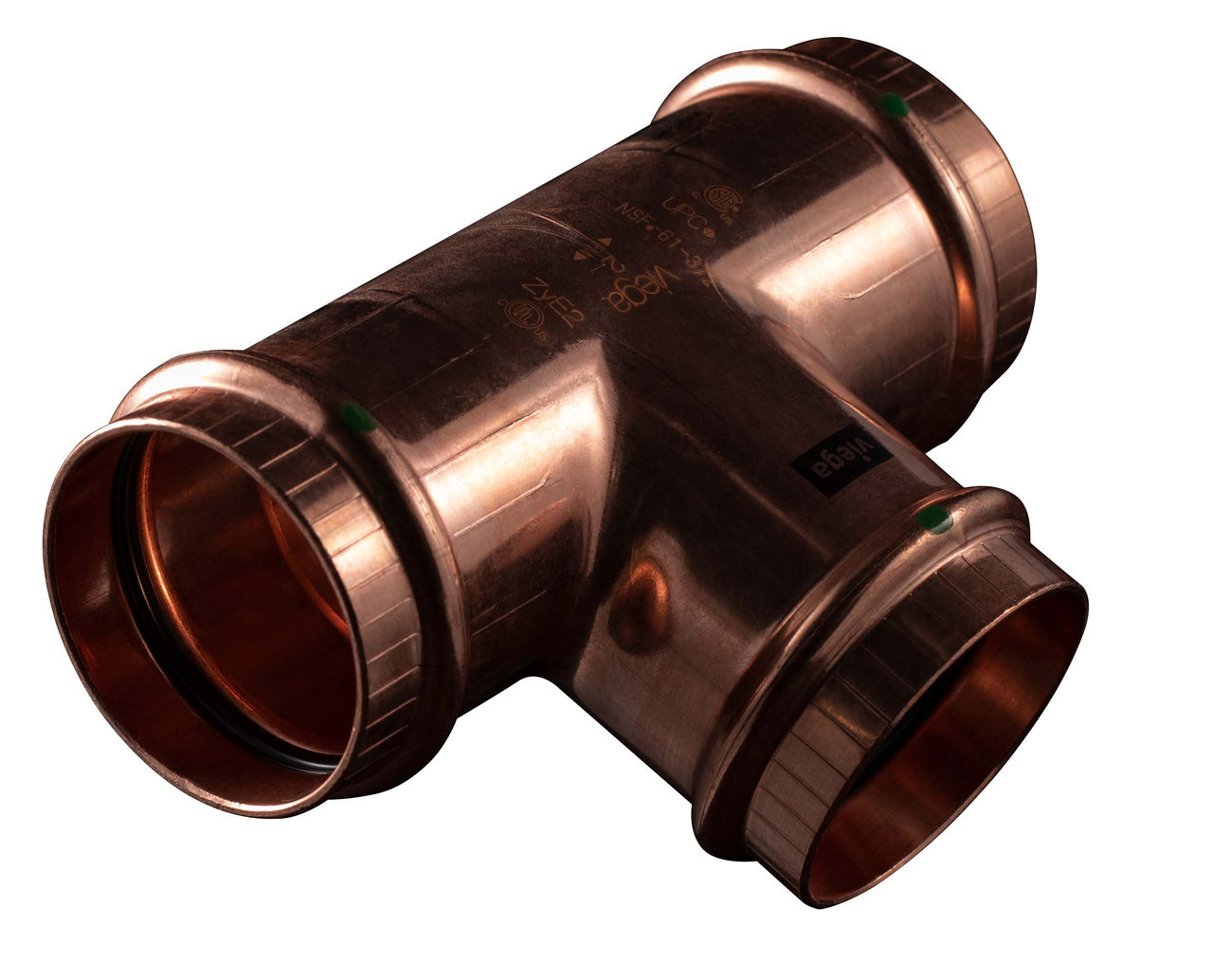

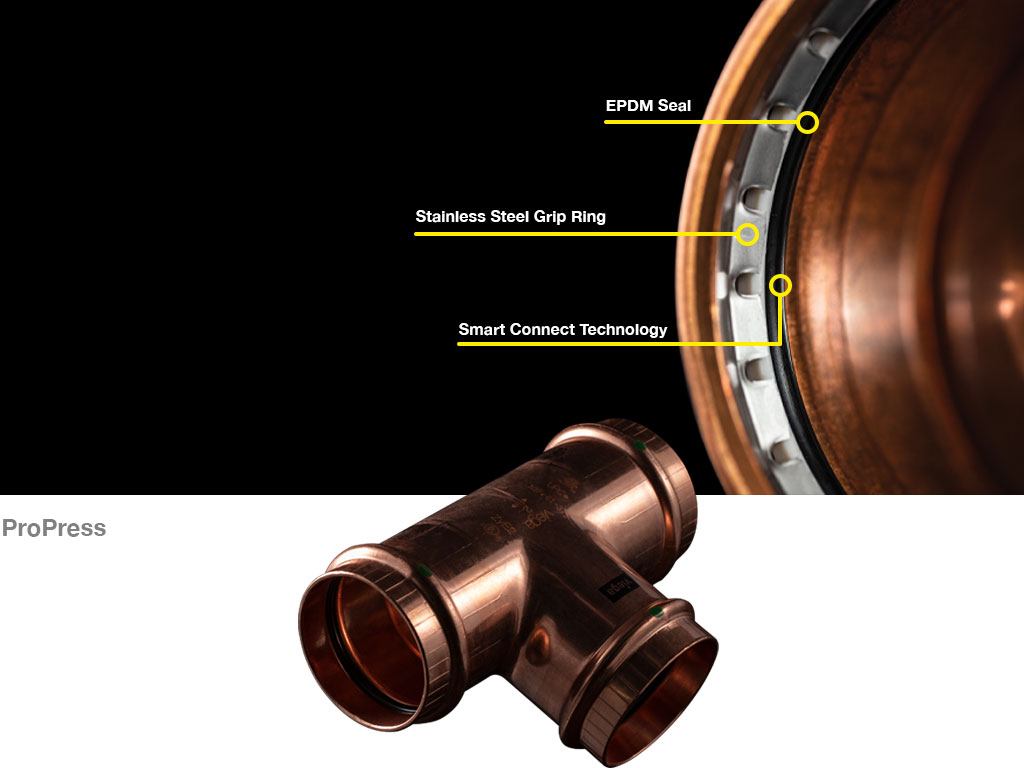

Viega ProPress^® Copper

For use on copper pipe in sizes ½" to 4"

Benefits

More than 400 different fitting configurations
More approvals than any other copper press fitting system
Available with EPDM, FKM and HNBR sealing elements
More than 200 different fitting and valve configurations

Water/Liquids

Hot and Cold Potable Water Test pressure 600 psi
Rainwater/ Graywater
Chilled Water ≤50% Ethylene / Propylene glycol
Hydronic Heating Water9 ≤50% Ethylene / Propylene glycol
Steam Low-pressure
Steam Residential

Fuels/Oils/Lubricants

Ethanol Pure grain alcohol
Lube Oil Petroleum based
Heating Fuel Oil
Diesel Fuel

Gases

Compressed Air     Oil Concentration ≤25 mg/m
Compressed Air     Oil Concentration >25 mg/m
Nitrogen - N2
Carbon Dioxide - CO2    Dry
Carbon Monoxide - CO
Argon - Ar
Ammonia Ammonia environment7
Oxygen - O2     Non-medical Keep free of oil and grease
Hydrogen - H2
Vacuum     Minimum absolute pressure Maximum differential pressure

Special Media

Acetone Liquid

For additional information, please see the approved applications chart. View Viega Approved Applications

Viega 316 ProPress^®Stainless

For use with 316 ProPress Stainless ECO Tubing

Benefits

More than 350 different fitting configurations
Approved for more than 800 different applications including potable water
Available with EPDM, FKM and HNBR sealing elements

Water/Liquids

Hot and Cold Potable Water Test pressure 600 psi
Rainwater/ Graywater
Chilled Water ≤50% Ethylene / Propylene glycol
Hydronic Heating Water9 ≤50% Ethylene / Propylene glycol
Treated Water Fully desalinated, deionized, deminerlized, distilled(open system)
Reverse Osmosis Water <1 MΩ
Paraffin Wax
Methyl Ethyl Ketone
Isopropyl Alcohol
Nitric Acid Concentration ≤10%
Phosphoric Acid Concentration ≤25%
Fire Sprinkler NFPA 13, 13D, 13R
Steam Residential

Fuels/Oils/Lubricants

Ethanol Pure grain alcohol
Mineral Oil
Lube Oil Petroleum based
Diesel Exhaust Fluid (DEF)
Biodiesel ASTM D6751
Heating Fuel Oil
Diesel Fuel
Kerosene
Gear Oil Lubricant
Automatic Transmission Fluid
Hydraulic Oil
Engine Oil
Engine Coolant
Waste Oil

Gases

Compressed Air     Oil Concentration ≤25 mg/m
Nitrogen - N2
Carbon Dioxide - CO2    Dry
Argon - Ar
Ammonia Anhydrous
Ammonia Ammonia environment7
Oxygen - O2     Non-medical Keep free of oil and grease
Hydrogen - H2
Acetylene     Test pressure 350 psi
Vacuum     Minimum absolute pressure Maximum differential pressure

Special Media

Methanol
Latex Paint
Urea Solution Concentration ≤40%
Caustic Soda Concentration ≤50%
Acetone Liquid

For additional information, please see the approved applications chart. View Viega Approved Applications

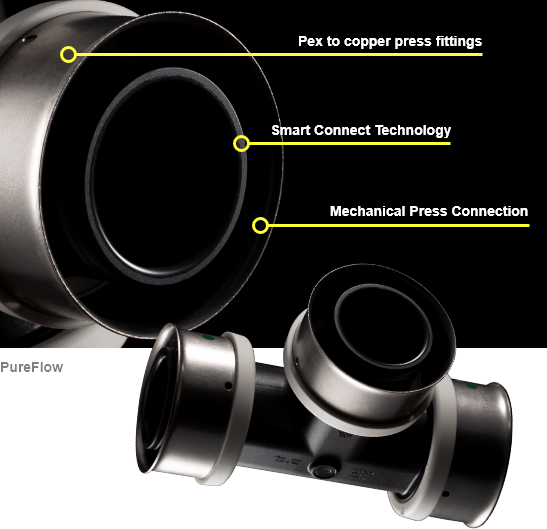

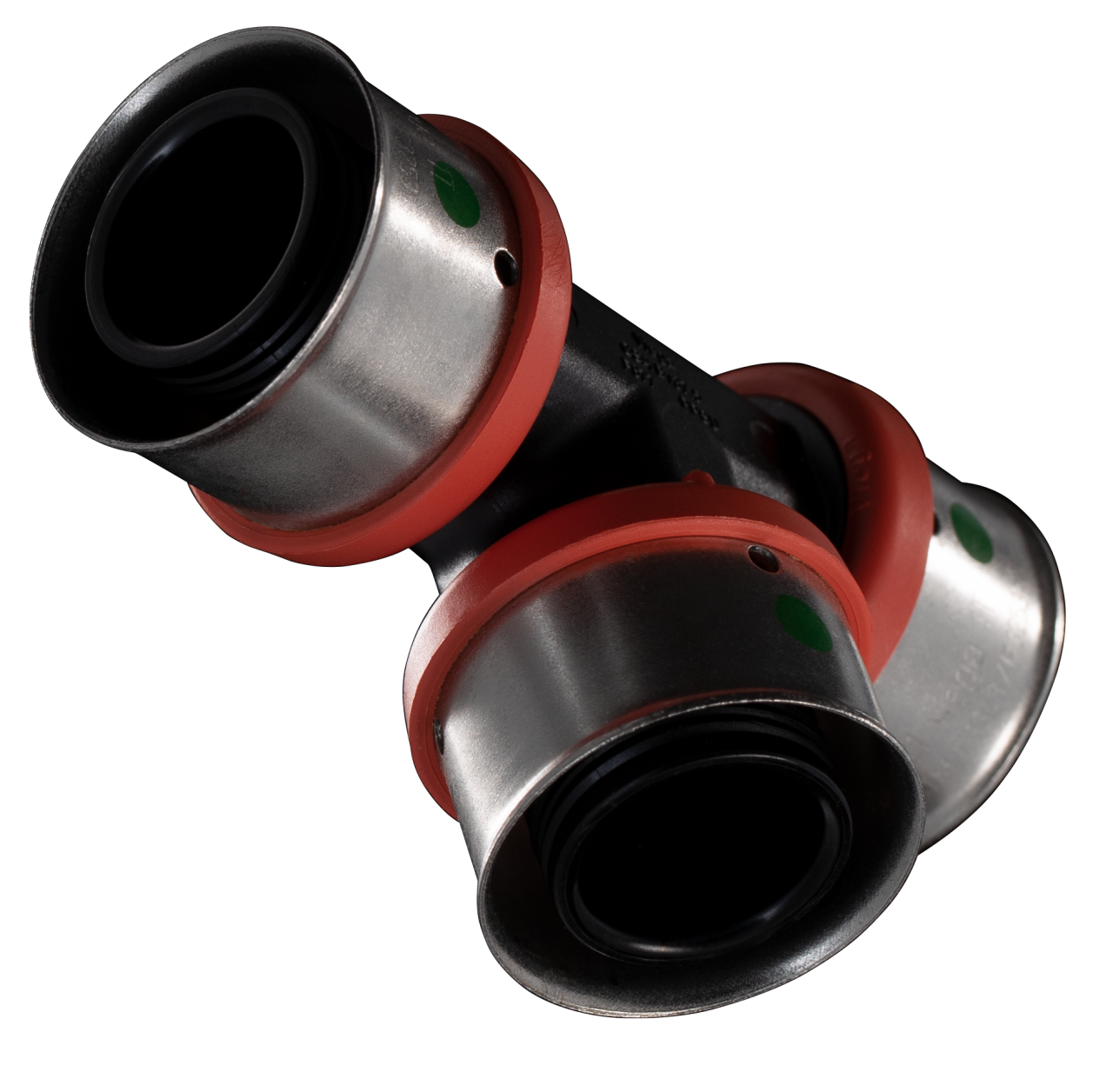

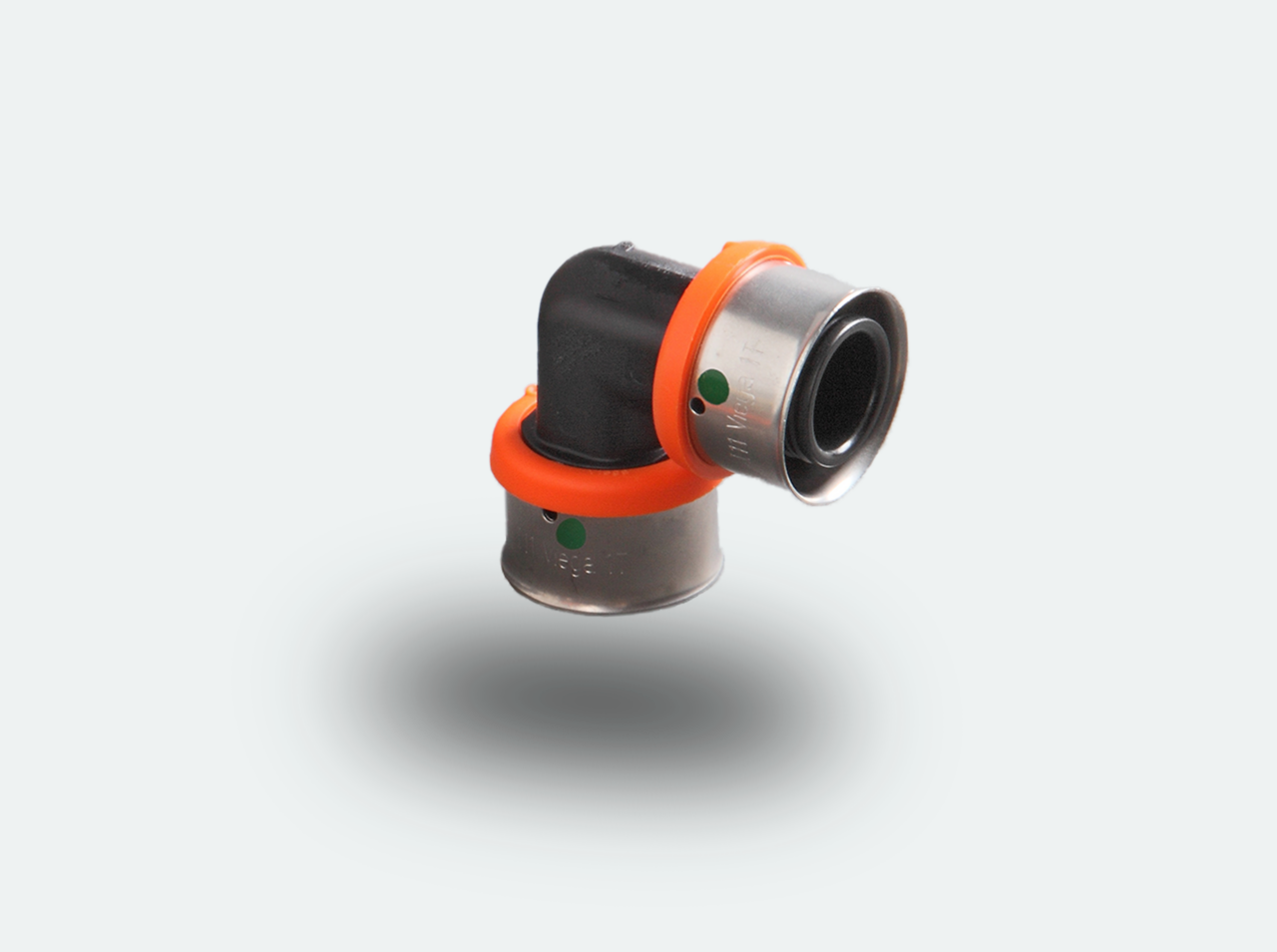

PureFlow^® Press System

For use on PEX tubing 3/8" to 2"

Benefits

Available in proprietary Zero Lead bronze and high-performance polymer
Fittings are factory assembled for faster installation
NSF 14 and NSF 61-G approvals for potable water systems
Suitable for radiant heating systems

Media

Potable Water / Rainwater / Greywater
Chilled Water / Hydronic Heating Water11 ≤50% Ethylene / Propylene glycol

For additional information, please see the approved applications chart. View Viega Approved Applications

SELECT THE VIEGA SYSTEM YOU'D LIKE TO LEARN MORE ABOUT.

With press technology, contractors can significantly shorten downtime for repairs since there’s no need to entirely drain a system. There are no flames with press fitting pipe, so fire watch is unnecessary.
