INDUSTRIAL PIPING SYSTEMS

Your end-to-end industrial piping solution

Viega press fittings and valves have more approvals than any press fitting manufacturer in the industry.
That means that from 1⁄2" all the way up to 4" in multiple alloys, including stainless steel, you have all the configurations you need. Viega press technology lets you make safe, secure connections in seconds – without a flame. And our Smart Connect® technology instantly identifies unpressed connections – so you can build and commission on the same day. If MRO is the name of your game, Viega helps you make repairs in seconds.

Get Started

Segments Served

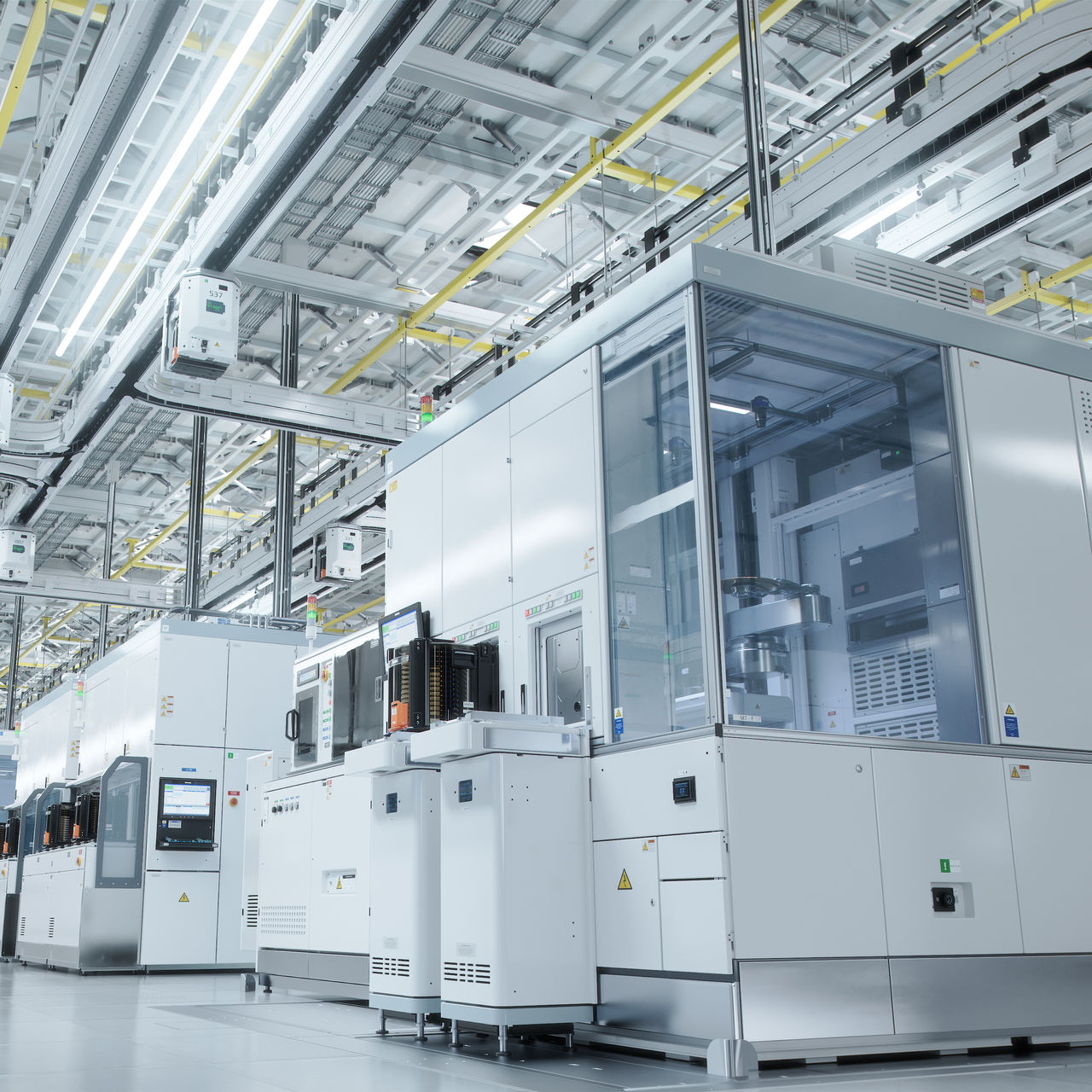

Inside Bright Advanced Semiconductor Production Fab Cleanroom with Working Overhead Wafer Transfer System

Semi-Conductor
No hot work. Ever. Our complete systems ranging from ½" up to 4" are secured safer and cleaner than traditional methods.

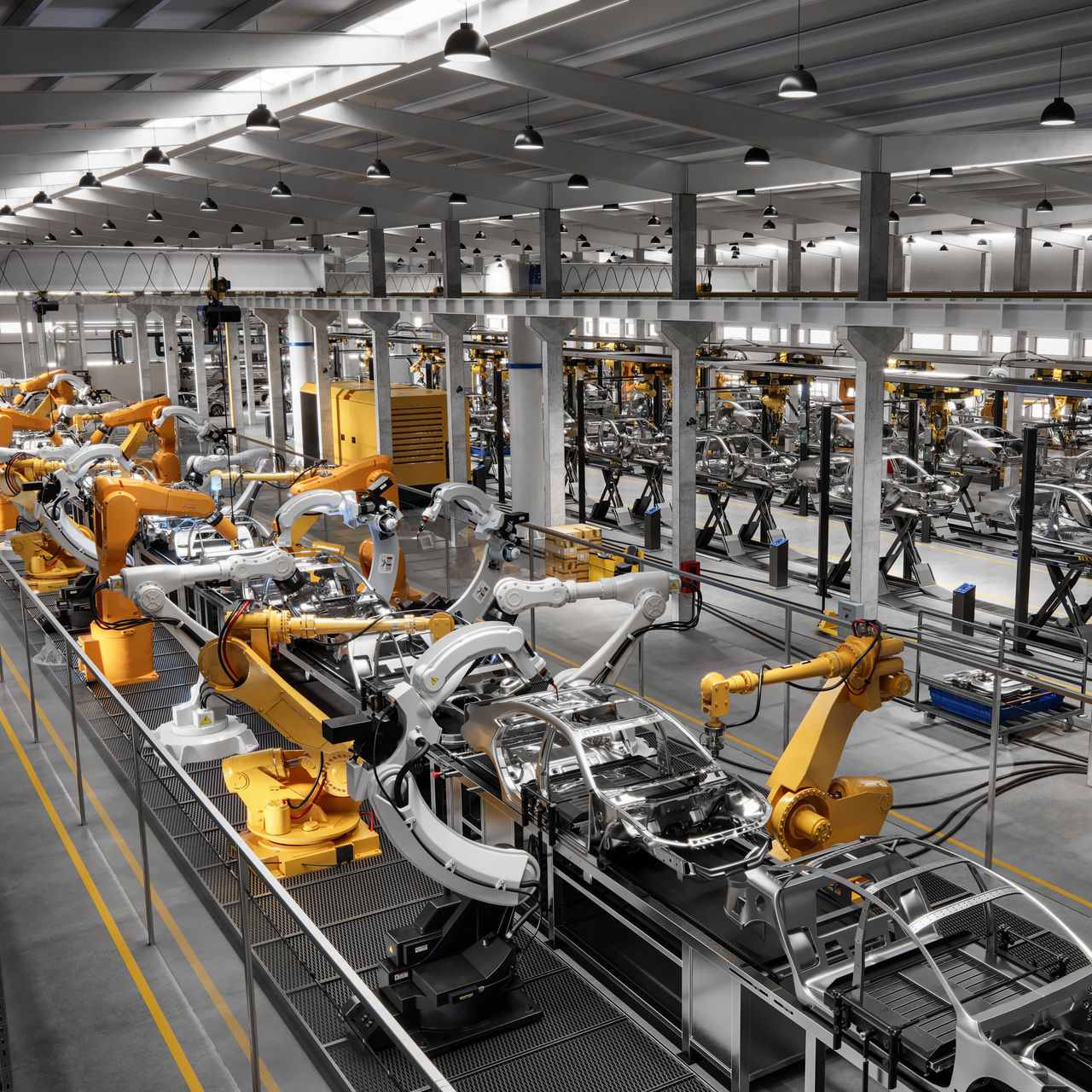

High angle view of cars on production line in factory. Many robottic arms doing welding on car metal body in manufacturing plant. Image in 3D render.

Electric Vehicle
Production never stops with Viega fittings. Keep projects on schedule or make repairs in seconds with our multiple alloy systems.

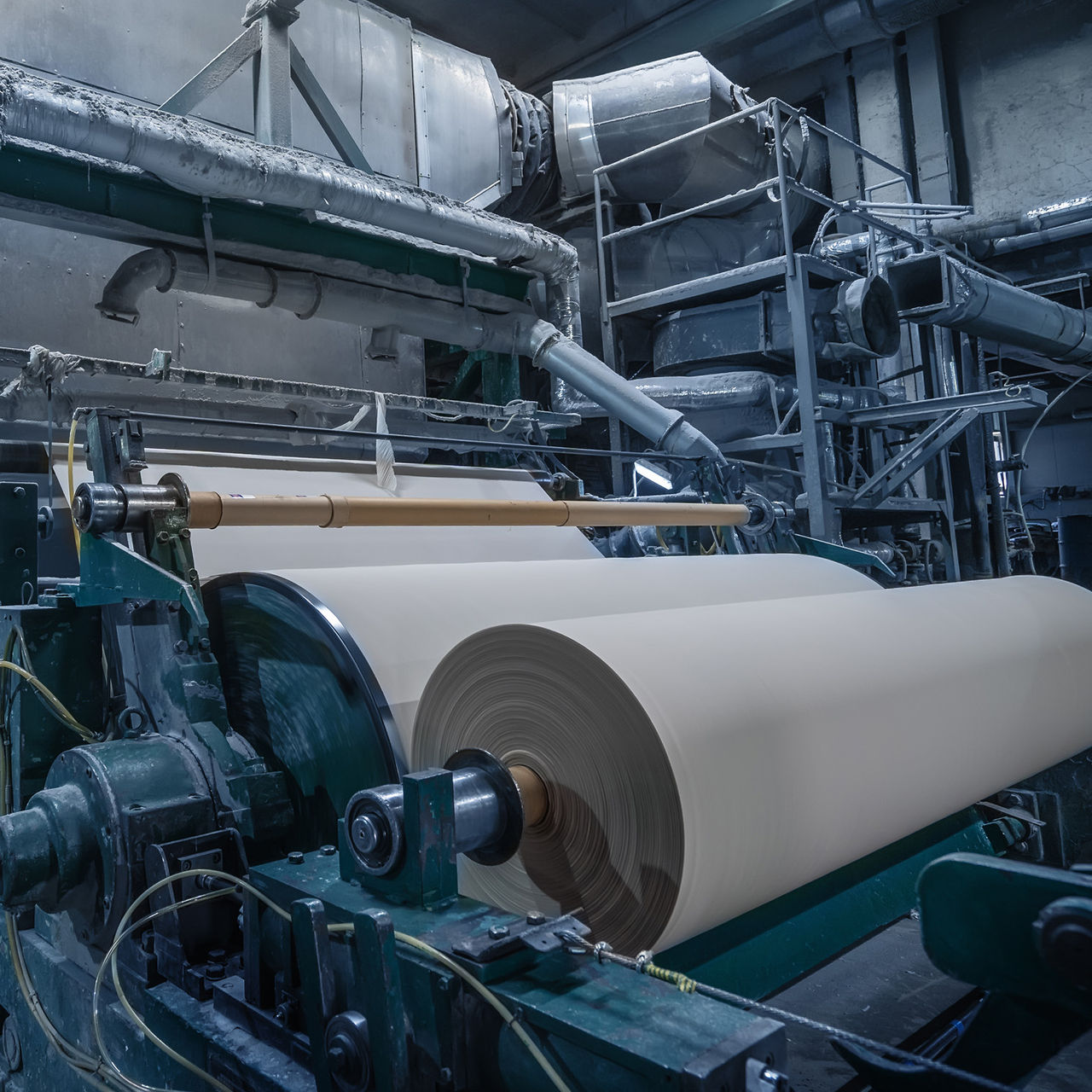

Pulp & Paper
Viega press fittings are engineered for running caustics and acids, mill water, steam and so much more.

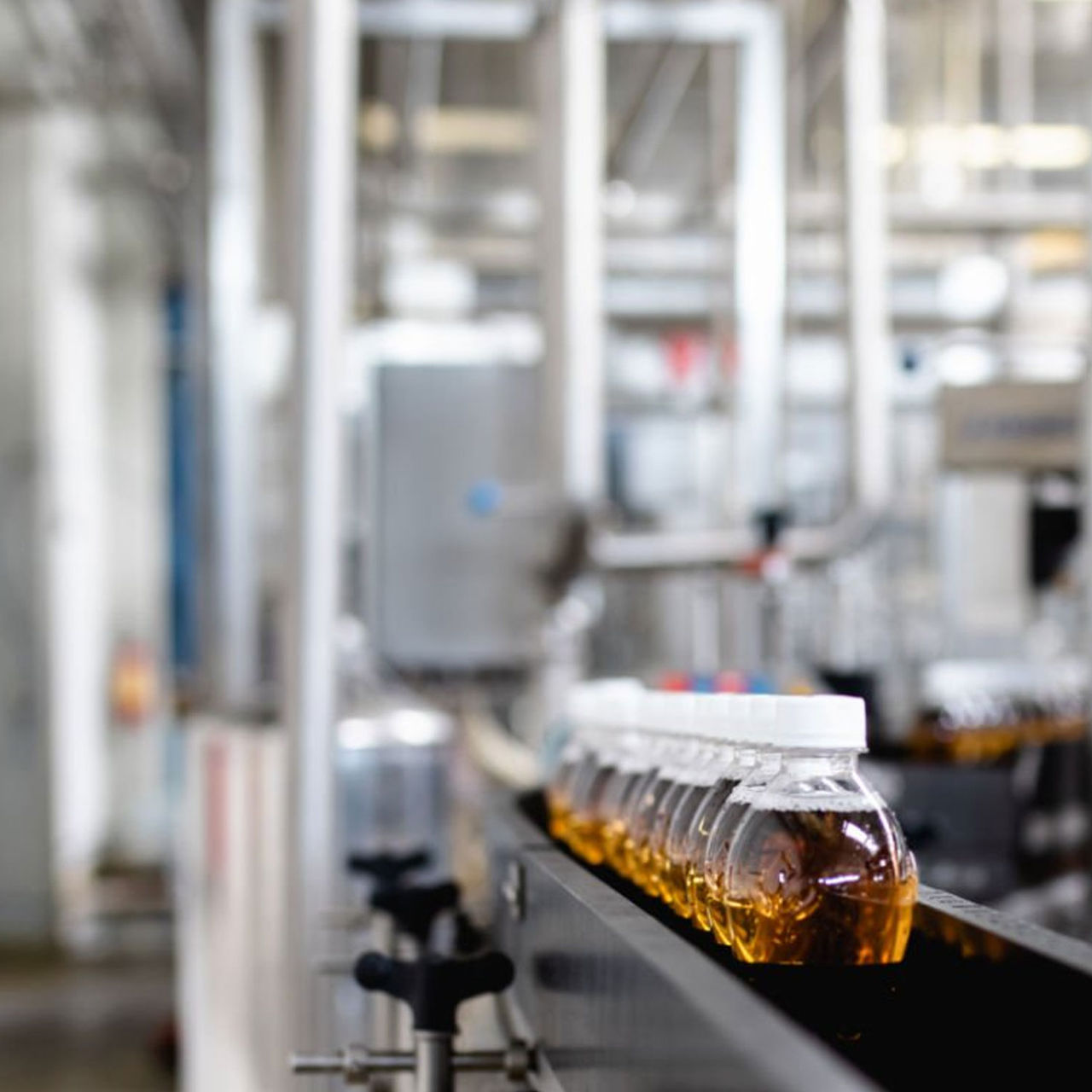

Food and Beverage
From the farm to food processing facilities, Viega fittings and valves are engineered to handle a wide range of caustic or corrosive media.

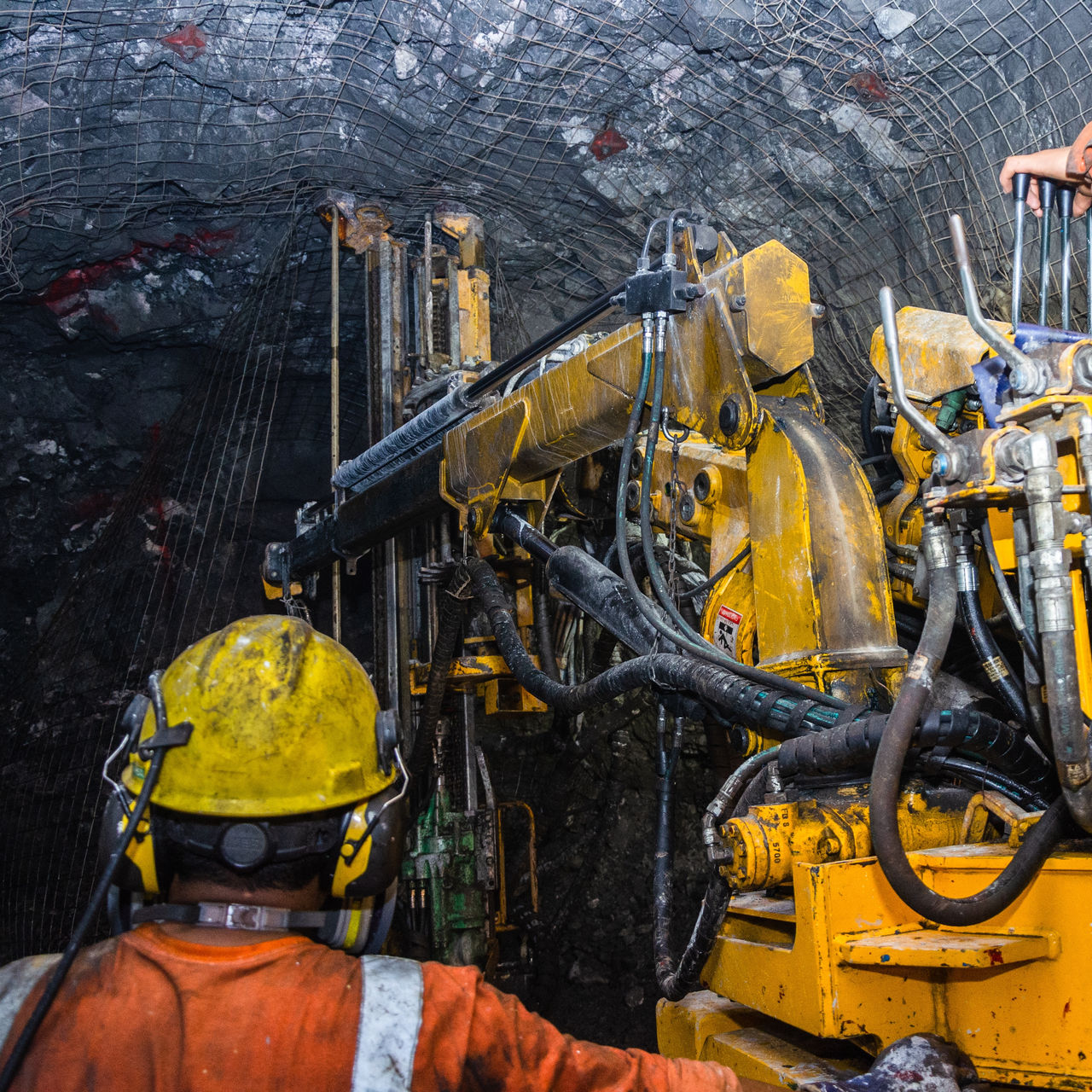

Mining operator on mining machine, underground mine mesh

Mining & Manufacturing
Viega press fittings are approved for over 2,500 applications. Don’t see yours on the list? We can test it for you.

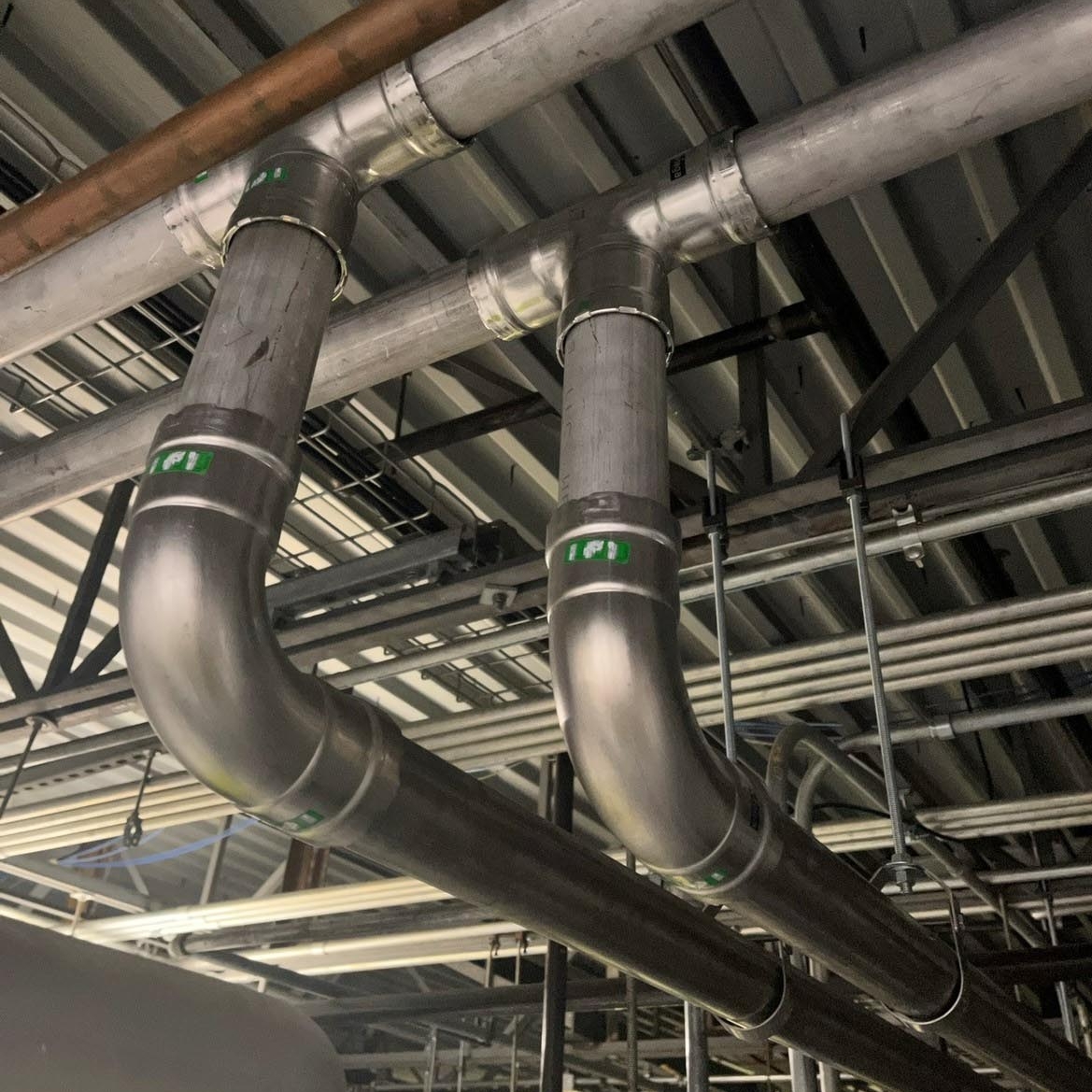

Pharmaceuticals & Life Sciences
Install or repair fittings and valves without bringing open flames and messy consumables into your sterile environments.

Chemicals
FKM, EPDM and HNBR sealing element options allow for the customization you need in specialty chemical facilities.

It’ll hold.

Viega fittings and valves make secure connections without reducing the integrity of the pipe or dragging out your install time like traditional methods. How secure are our fittings and valves? Well, Viega is the only manufacturer to pass the highest seismic testing in the U.S.

Get up and running faster.

See the Test

Design with Confidence

In 2024, The American Society of Mechanical Engineers (ASME) has given B31 Board approval to Viega to include ASTM F3226 Metallic Press-Connect Fittings as a listed component. The code includes several sections – Power Piping, Process Piping and Building Services Piping – where Viega ProPress® and MegaPress® systems are approved listed components. That means from new builds to timely repairs, engineers can have total confidence using Viega in industrial settings.

Learn more

Benefits of Viega Press Technology

Eliminate Hot Work

Soldering and welding equipment is responsible for nearly 1,200 fires causing $150 million dollars in property damage*. Viega press fittings require no open flames or hot work permits.

Reliable + Quality Installation

Unlike grooved or threaded connections that reduce pipe wall thickness, Viega fittings preserve pipe integrity. All of our fittings come factory assembled for maximum consistency in the field.

Faster, Consistent Connections

A simple 11-joint assembly takes just under 11 minutes to press*. Compare that to more than two-and-a-half hours of welding and you’re talking about some serious cost savings.

Reduce Downtime

When unplanned downtime can cost hundreds of thousands of dollars every hour, you need a product that can get you up and running faster. Viega press fittings reduce install time by up to 90%.

Make planned downtime a success

Rand Whitney believes it – after swapping the traditional planned downtime method for 4" Viega MegaPress Stainless. See how this 24-hour manufacturing facility was able to save a day of labor on a recent repair.

Viega in Action

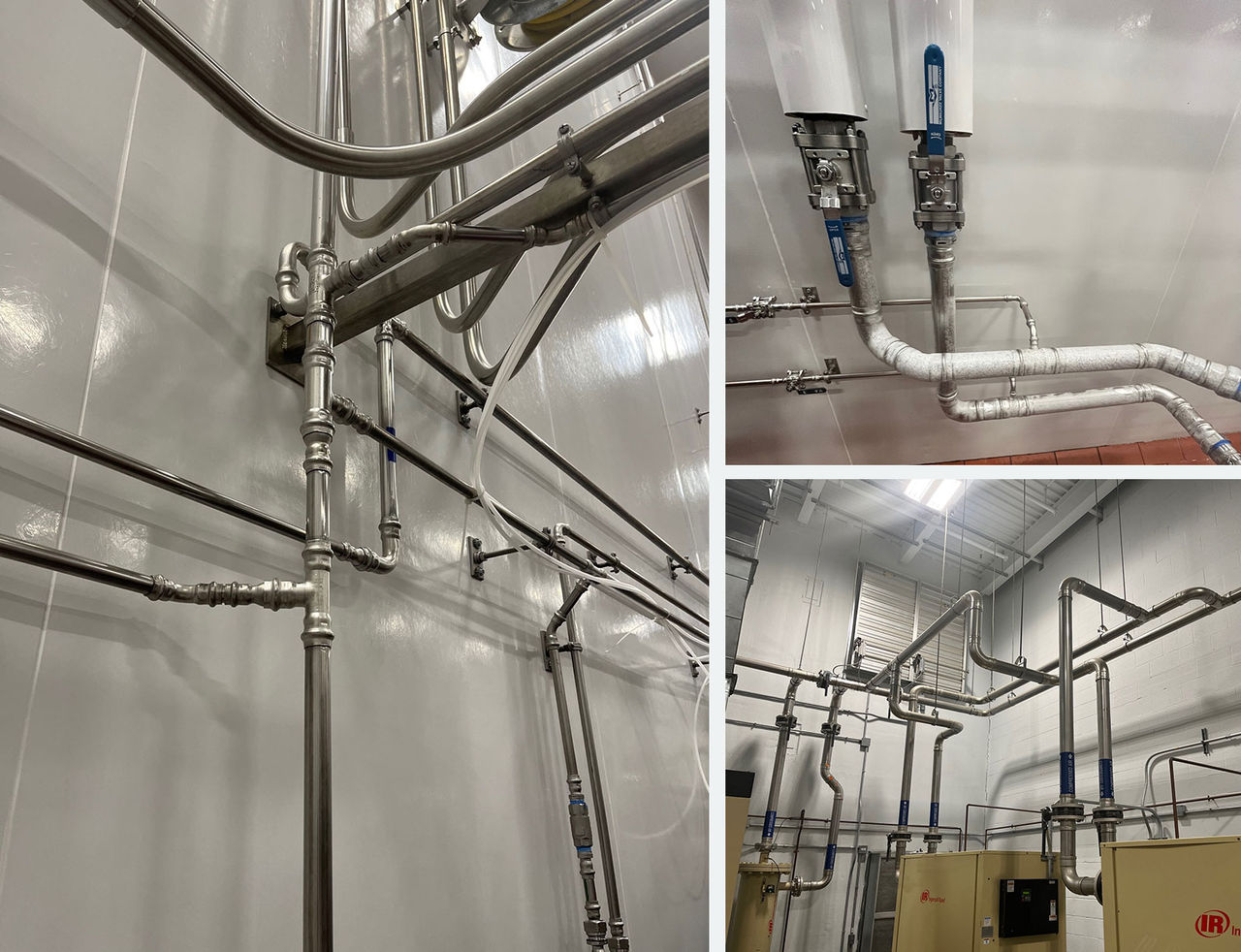

Ken’s Food Facility in Lebanon, Indiana

Everybody knows the best wings start in Lebanon, Indiana at the Ken’s Food facility where Sweet Baby Rays BBQ Sauce is made.

Using Viega ProPress and ProPress Stainless ½” – 2” fittings allowed Greiner Brothers Contractors to get chilled water, compressed & instrument air and process water lines Installed quickly.

Viega in Action

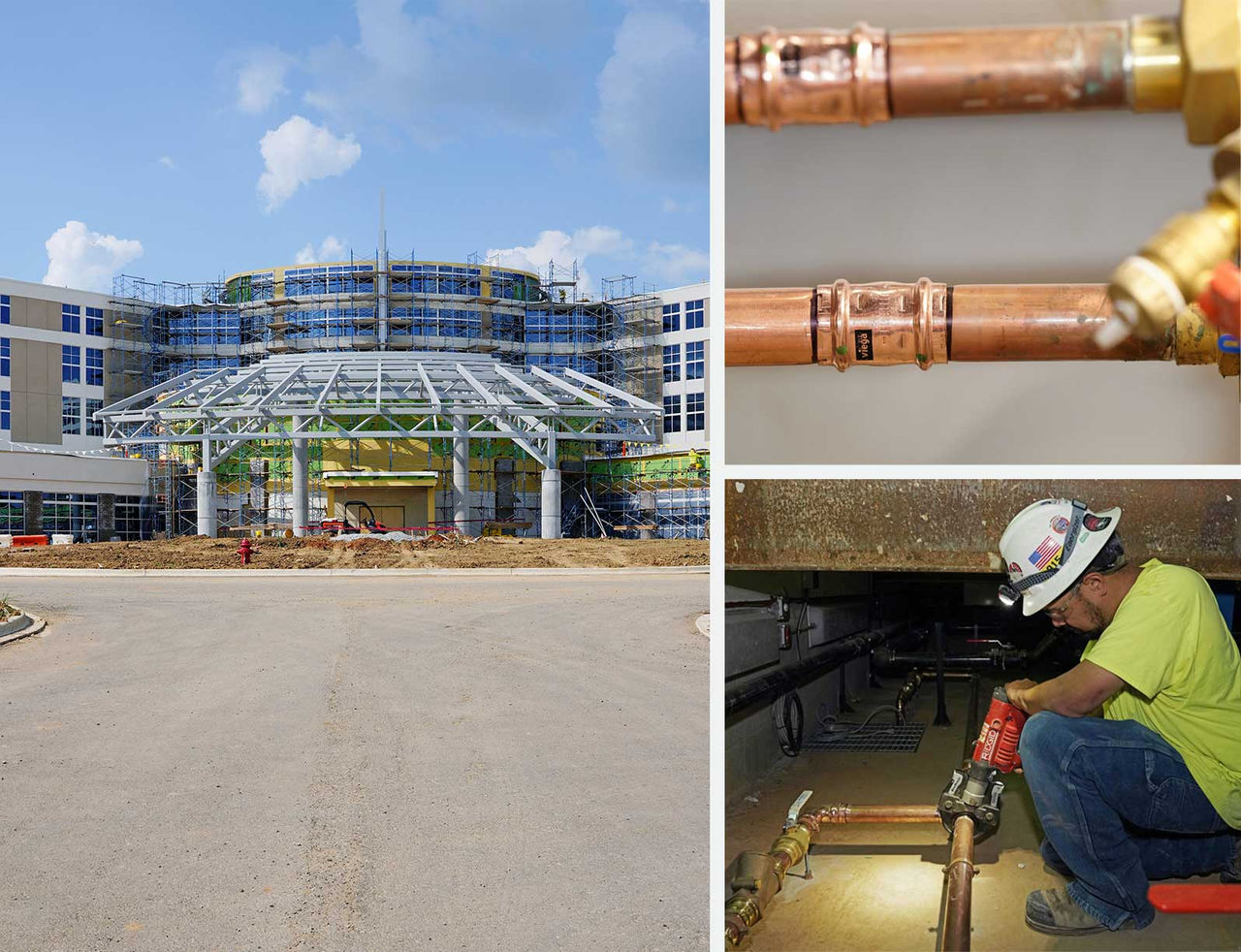

North Alabama Medical Center in Florence, Alabama.

With an aggressive construction schedule – just 23 months to build a 485,000-square foot, five-story hospital – contractors knew that speedy installation was a must. Viega had the answer.

You can find both our ProPress and MegaPress fittings throughout the North Alabama Medical Center in a variety of sizes from 1/2” all the way up to 4”. It’s the go-to for Layton Construction (General contractor) and MMC (Mechanical contractor) when the entire community is relying on its hospital opening on-time.

Viega in Action

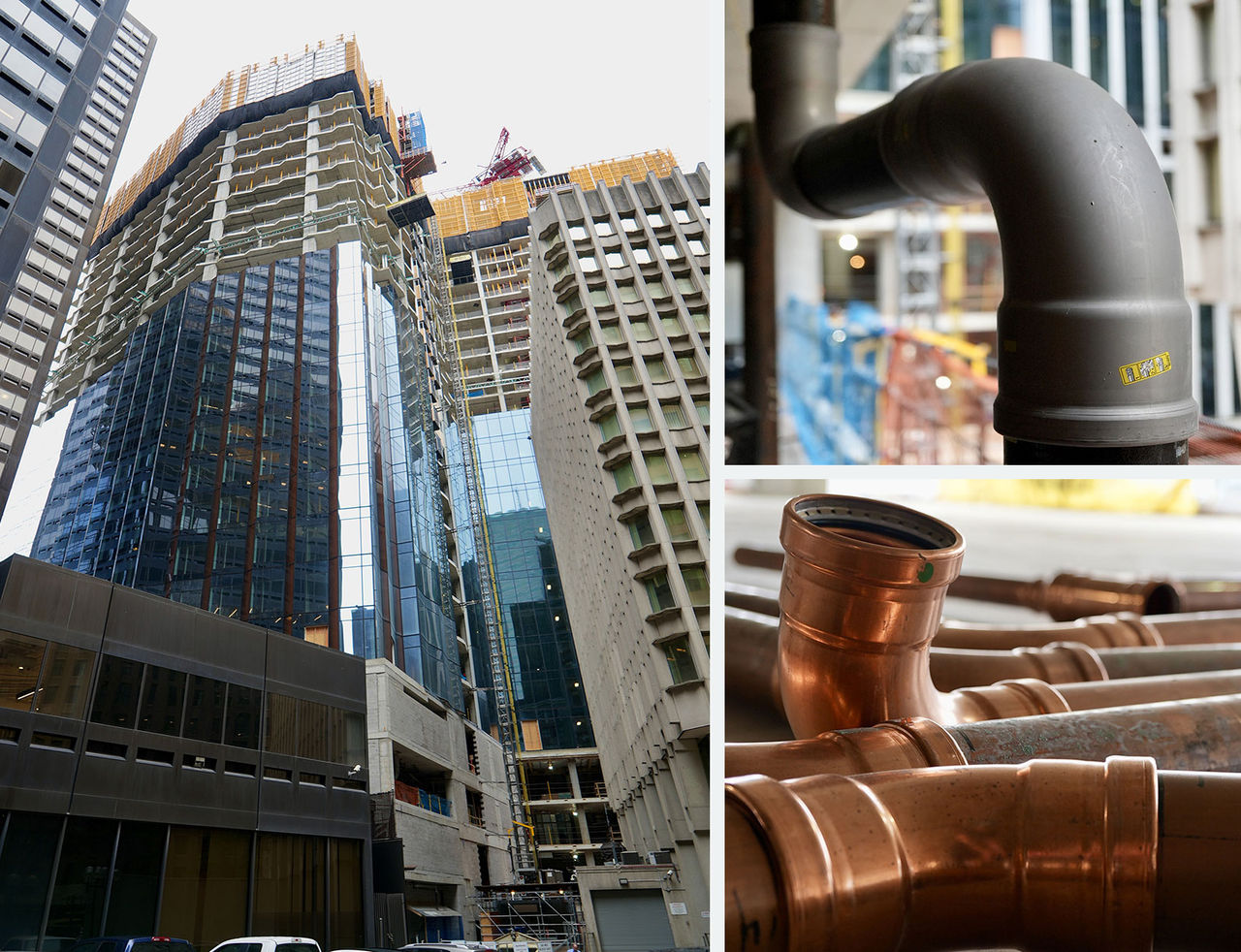

Press technology speeds up massive 53-story mixed-use high rise build

“We are always required to have fire watches when we have an open flame and torch with soldering, so then we have to schedule watch guys and all of that,” said Steve Thompson, General Foreman for EM Duggan in Boston, Massachusetts. “ProPress helps eliminate that. And with MegaPress, we can eliminate the fire watches needed for welding, so both products are a time saver for us.”

ProPress fittings were used on the potable water system, hot water return and hot/cold lines along with a rainwater reclamation system. MegaPress pipe fittings were the choice for all the natural gas piping in the building and throughout the mechanical rooms.

Viega in Action

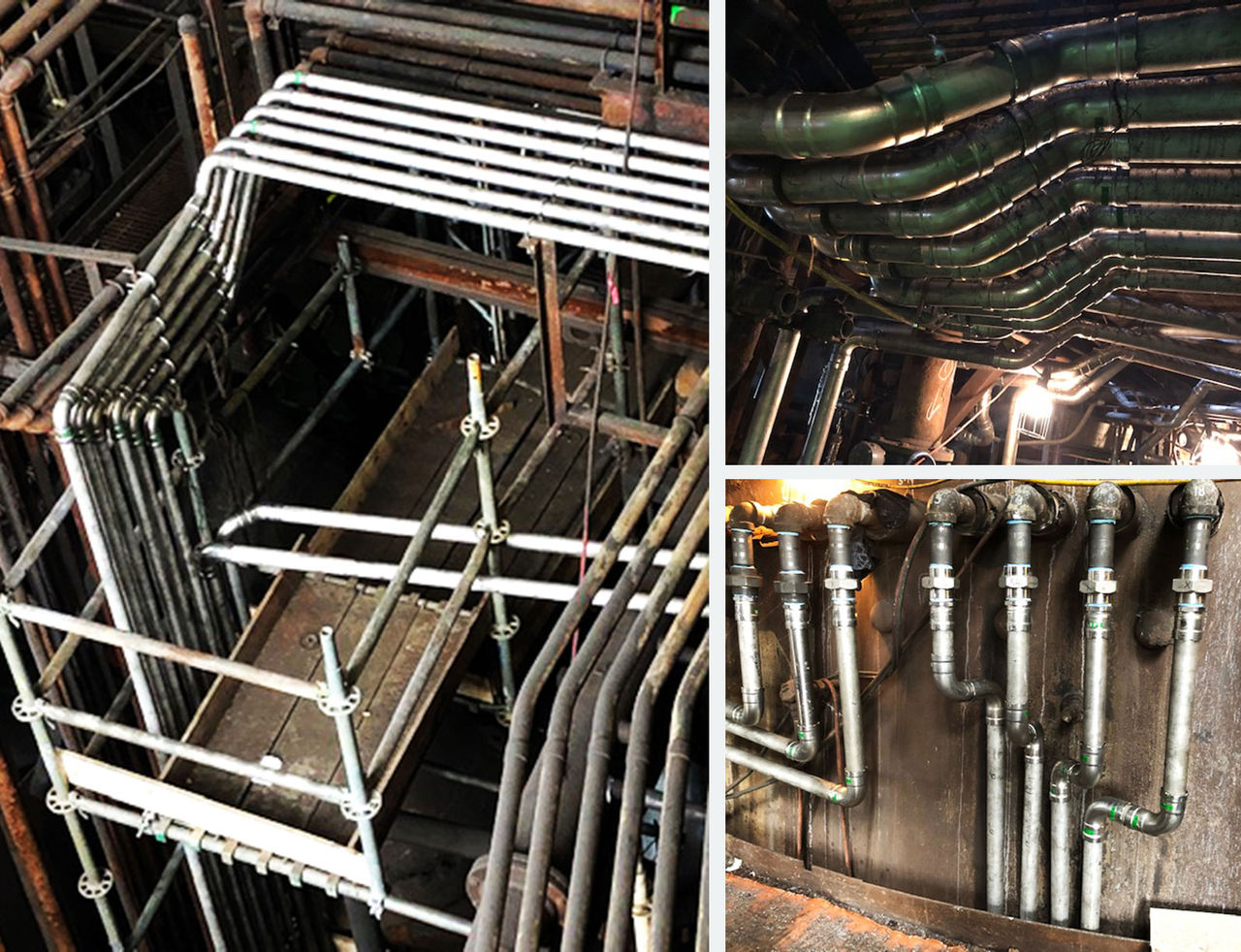

100-year-old steel plant completely
rebuilds furnace in 9 weeks

When a large steel manufacturer had to install 3,000 feet of 1 1/2” pipe and 5,000 feet of 2” pipe in just over two months, traditional methods simply weren’t fast enough.

Viega press fittings ensured that the project took week less to complete and had the plant’s furnace operating at full capacity reliably.

Rand-Whitney Containerboard in Montville
Ken's
North Alabama
Press Technology
100 Year Old

Chemical Compatibility Submission

Approval of nonstandard applications requires chemical compatibility submission

Viega ProPress and MegaPress systems are approved for a wide variety of standard applications including: water, fuels, oils, lubricants, and gases.

They are also approved for more than 2,500 nonstandard applications including:

Potable Water Systems
Chilled Water Systems
Gas Systems
Hydronic Heating Systems
Radiant Heating/Snow Melt Systems
Patio Gas

Treated Water
Fire Sprinkler
Natural Gas
Low-Pressure Steam
Reverse Osmosis Water
Diesel Fuel

Commercial buildings require reliable connections. That’s why we subject our systems to the strictest quality and performance testing - including burst, vibration, fire, and seismic. We also work directly with our customers to provide unique solutions to modern challenges.

As a result, Viega press systems have earned a litany of certifications from governing bodies across the US and abroad.

See the Difference

Our engineering is elite. Viega fittings and valves come in multiple alloys, hundreds of configurations and 3 unique sealing elements. They also have Smart Connect® technology built in – which allows you to identify unpressed connections during system pressure tests. This means you can build and commission on the same day.

Behind our products stand the industry’s leading training, design and engineering services, field reps and customer service. It’s all included.

Learn More

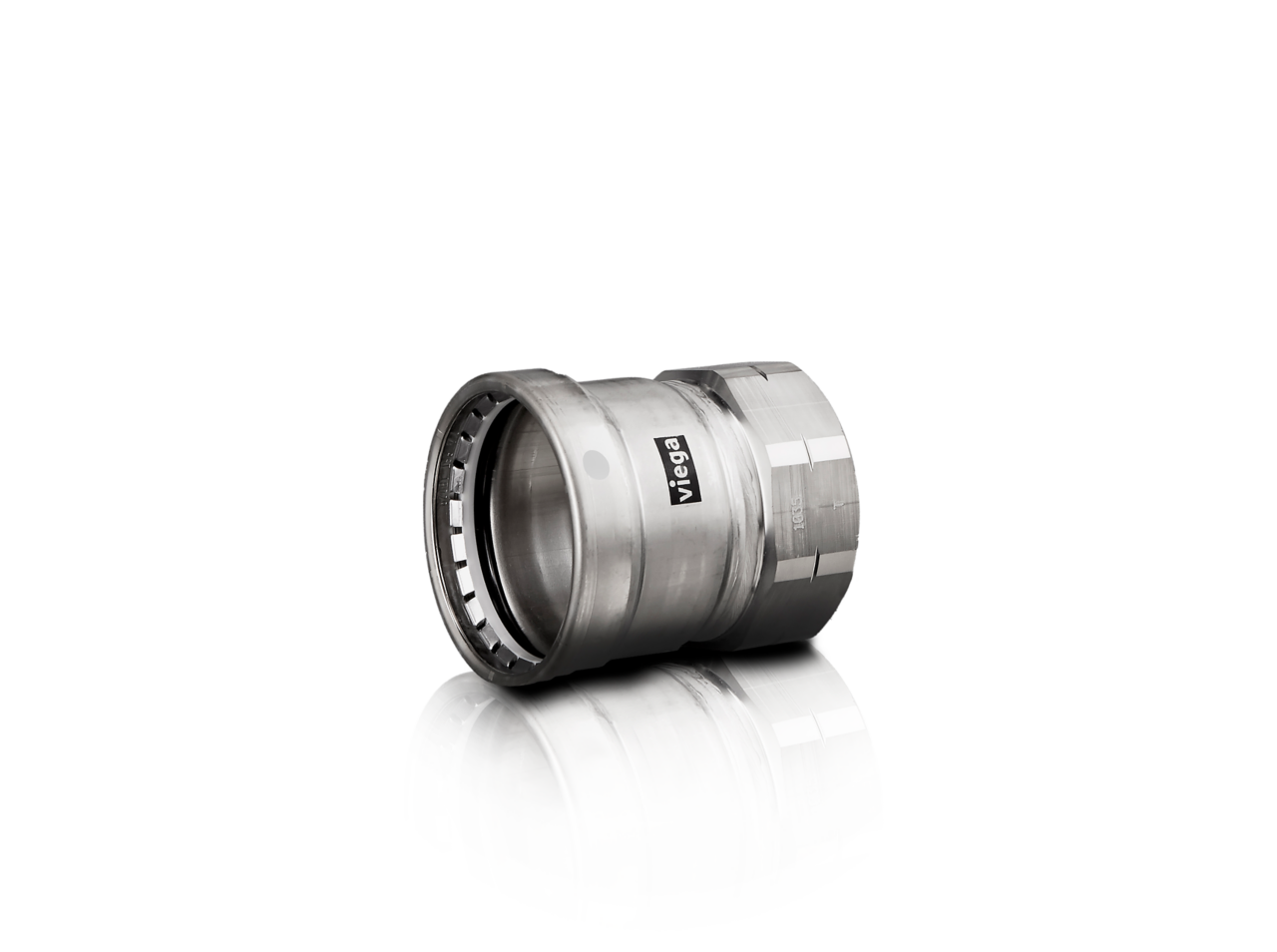

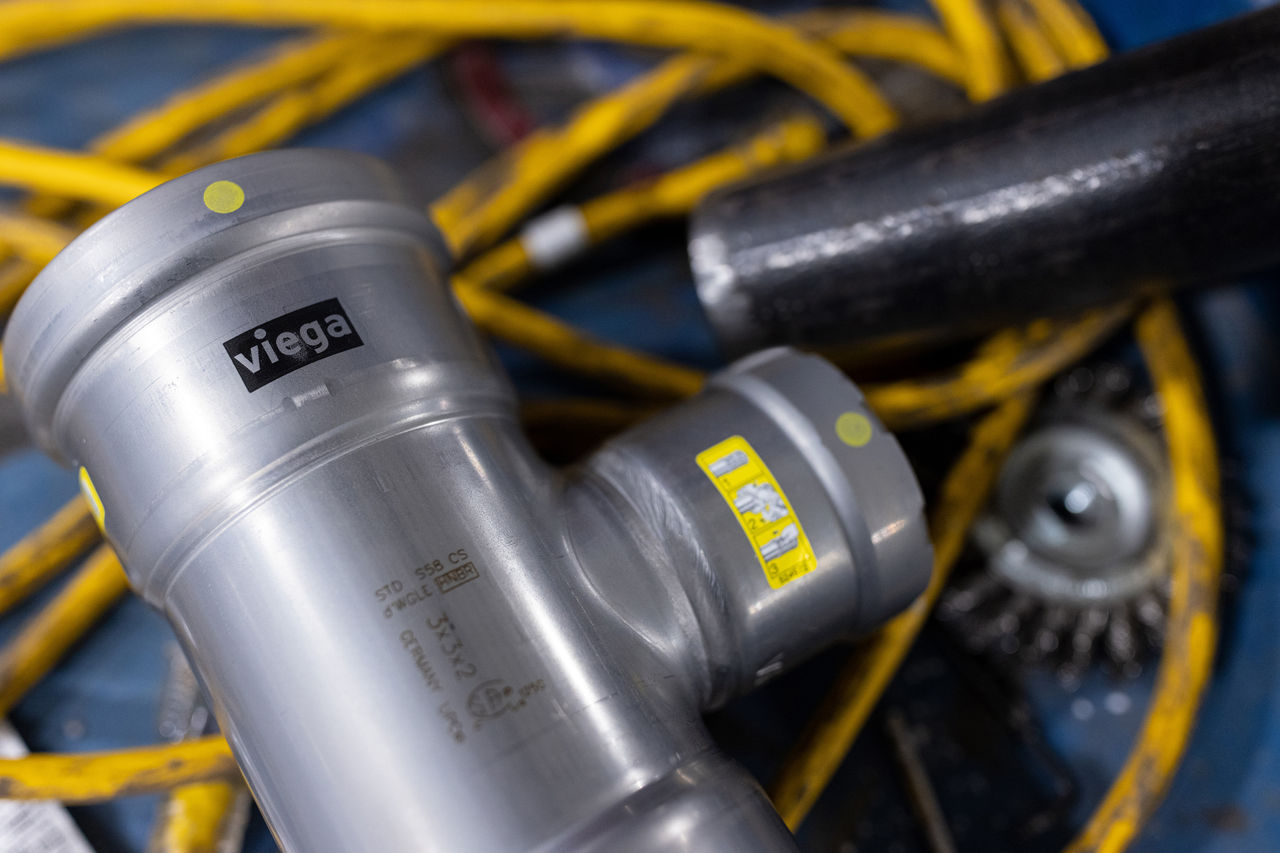

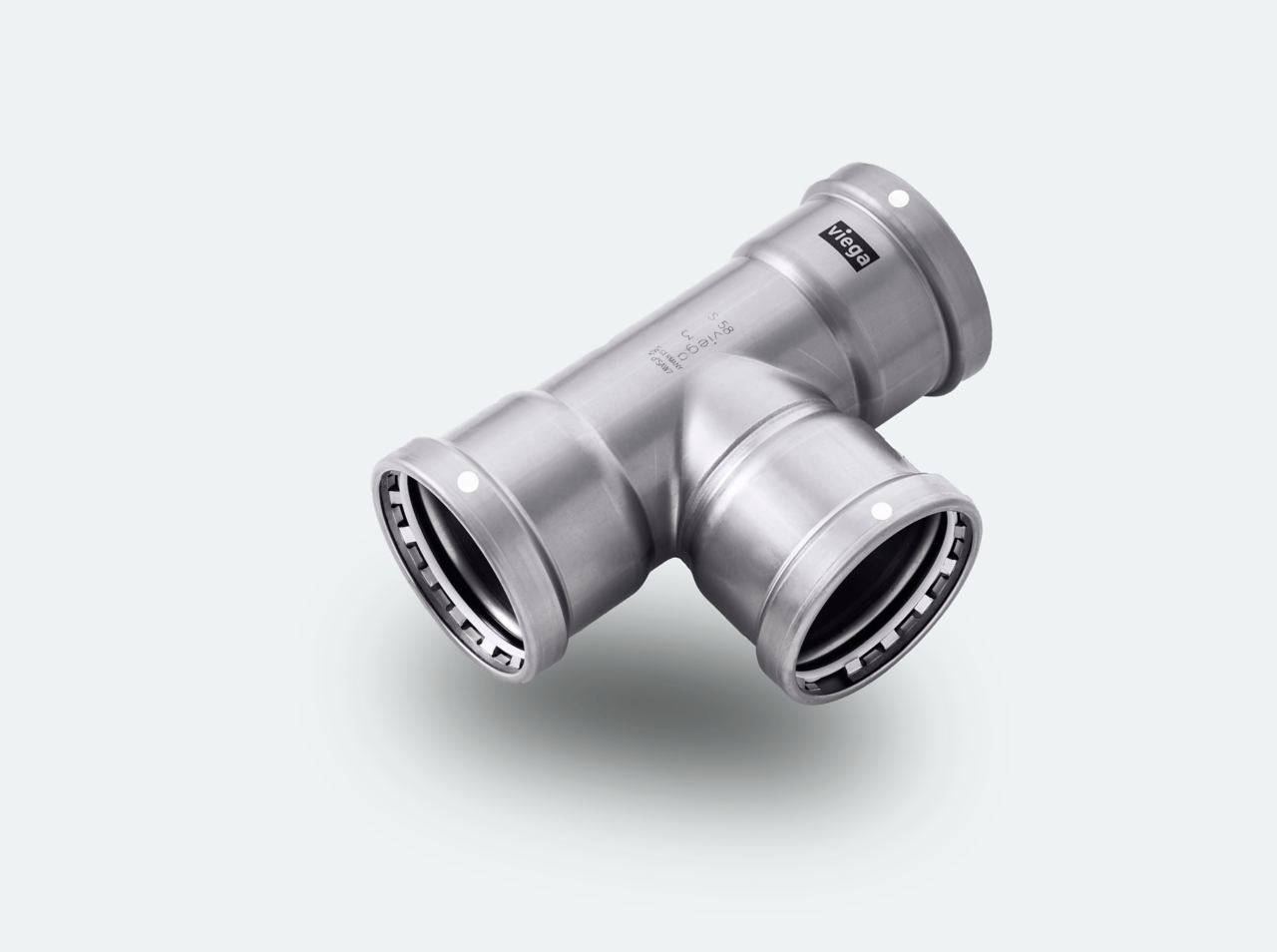

Viega MegaPress^® FKM

For use with Schedule 5 to Schedule 40 carbon steel pipe

Benefits

FKM sealing element allows for installation in higher temperature applications
More than 180 configurations from ½" to 4"
Approved for use in residential and low pressure steam, compressed air, fire protection and many fuel/oil applications

Water/Liquids

Chilled Water    ≤50% Ethylene / Propylene glycol
Hydronic Heating Water9    ≤50% Ethylene / Propylene glycol
Isopropyl Alcohol
Fire Sprinkler     NFPA 13, 13D, 13R
Steam Low-pressure
Steam Residential

Fuels/Oils/Lubricants

Mineral Oil
Lube Oil Petroleum based
Biodiesel ASTM D6751
Heating Fuel Oil
Diesel Fuel
Kerosene
Gear Oil Lubricant
Automatic Transmission Fluid
Hydraulic Oil
Engine Oil
Engine Coolant
Waste Oil

Gases

Compressed Air     Oil Concentration ≤25 mg/m
Compressed Air     Oil Concentration >25 mg/m
Nitrogen - N2
Carbon Dioxide - CO2    Dry
Argon - Ar
Ammonia Ammonia environment7
Hydrogen - H2
Acetylene     Test pressure 350 psi
Vacuum     Minimum absolute pressure Maximum differential pressure

For additional information, please see the approved applications chart. View Viega Approved Applications

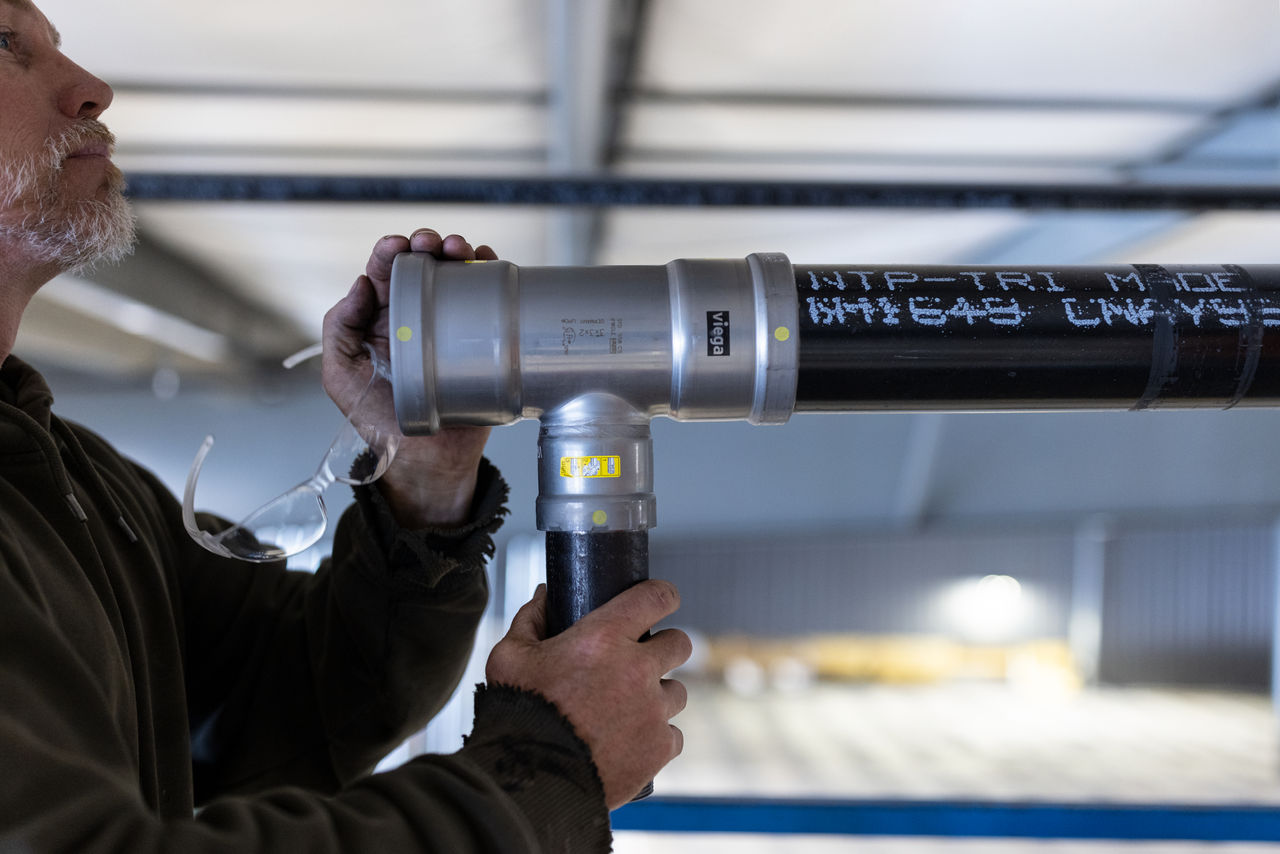

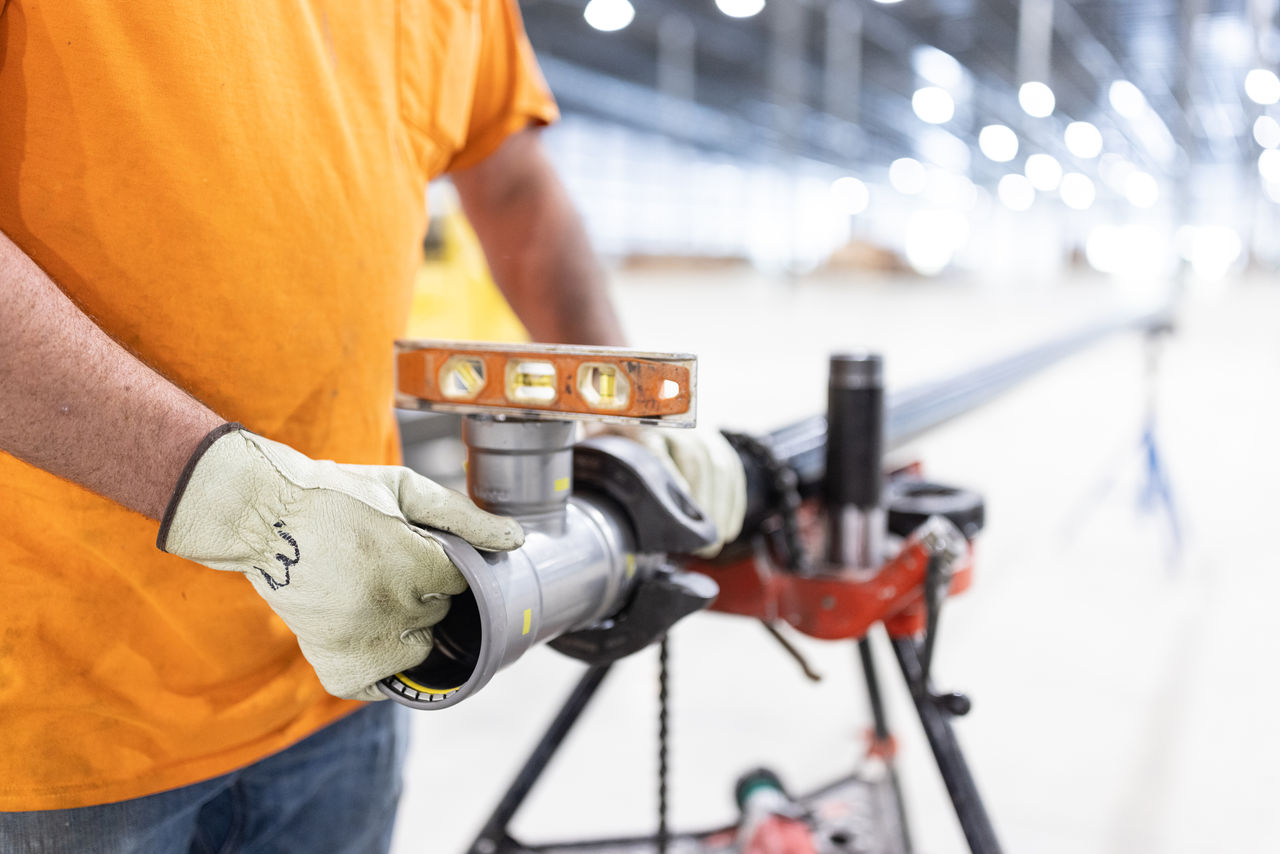

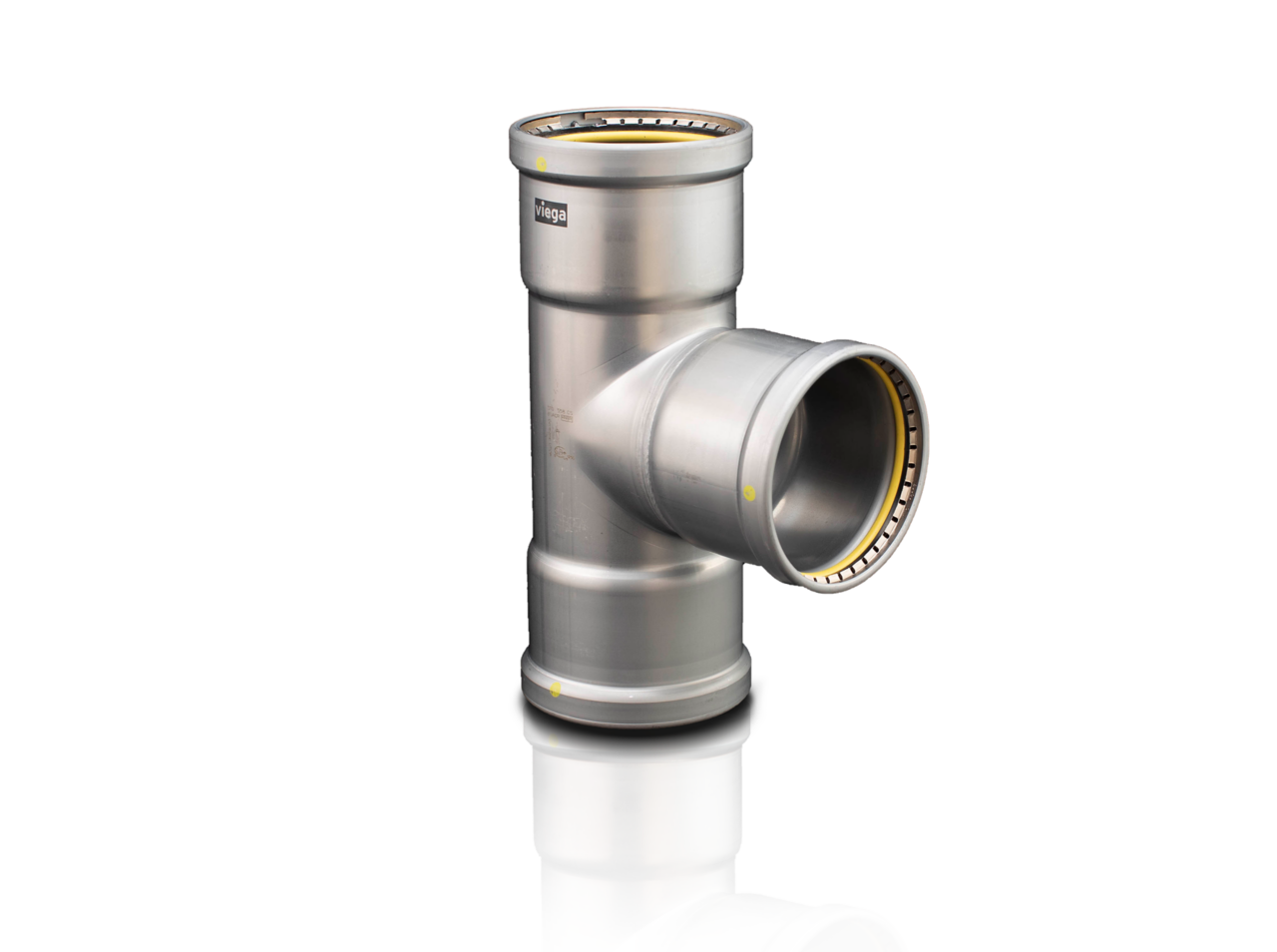

Viega MegaPress^®G

For use with Schedule 5 to Schedule 40 carbon steel pipe

Benefits

HNBR sealing element approved for use in gas and fuel oil applications
First fitting approved for connecting gas pipe up to 4"
Nearly 150 configurations from ½" to 4"
Approved for underground applications in accordance with code and local AHJ

Fuels/Oils/Lubricants

Mineral Oil
Lube Oil Petroleum based
Propane
Butane
Natural Gas  Primarily methane
Heating Fuel Oil
Diesel Fuel
Gear Oil Lubricant
Automatic Transmission Fluid
Hydraulic Oil
Engine Oil
Waste Oil

Gases

Compressed Air     Oil Concentration ≤25 mg/m
Compressed Air     Oil Concentration >25 mg/m
Nitrogen - N2
Carbon Dioxide - CO2    Dry
Argon - Ar
Ammonia Ammonia environment7
Hydrogen - H2
Acetylene     Test pressure 350 psi
Vacuum     Minimum absolute pressure Maximum differential pressure

For additional information, please see the approved applications chart. View Viega Approved Applications

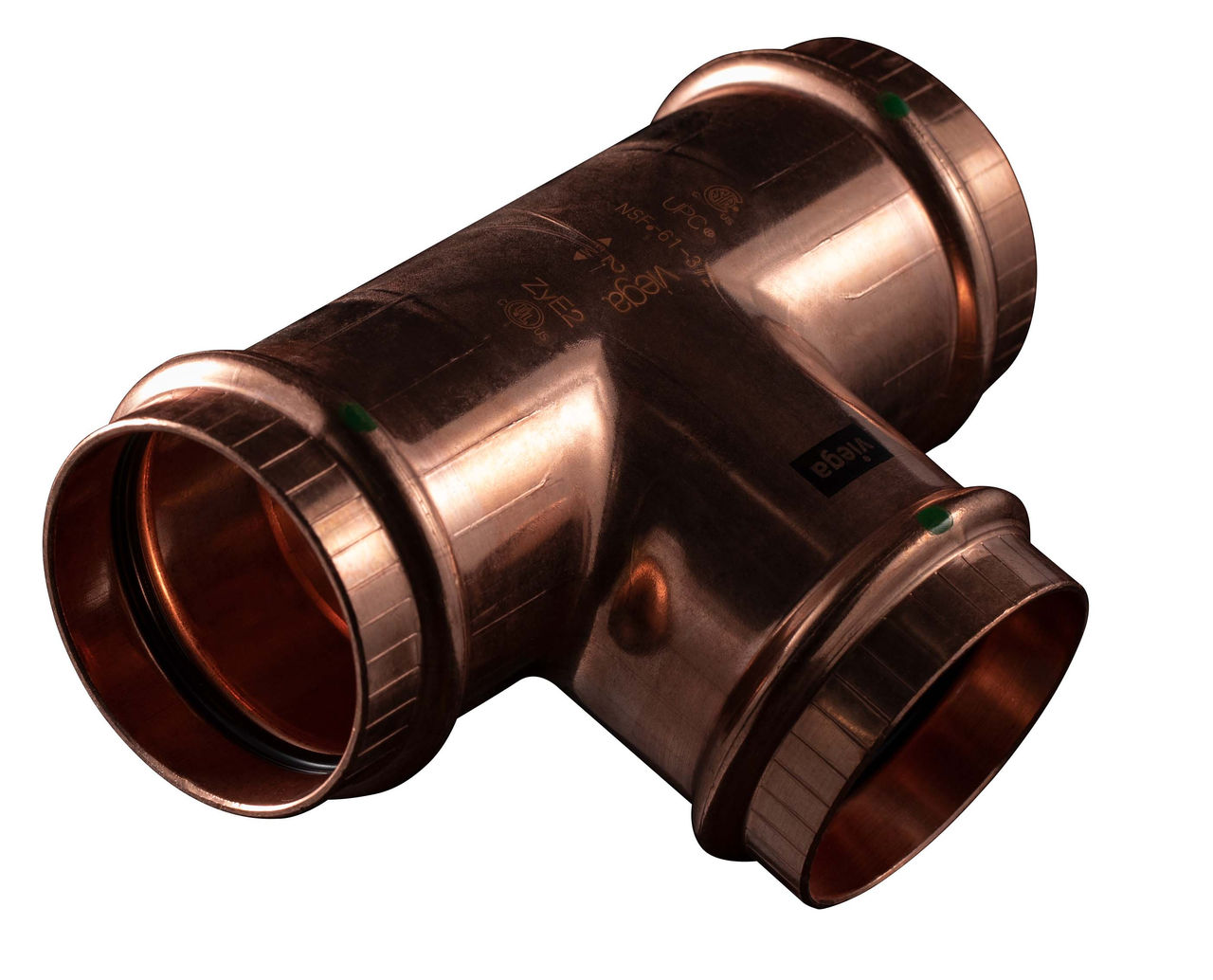

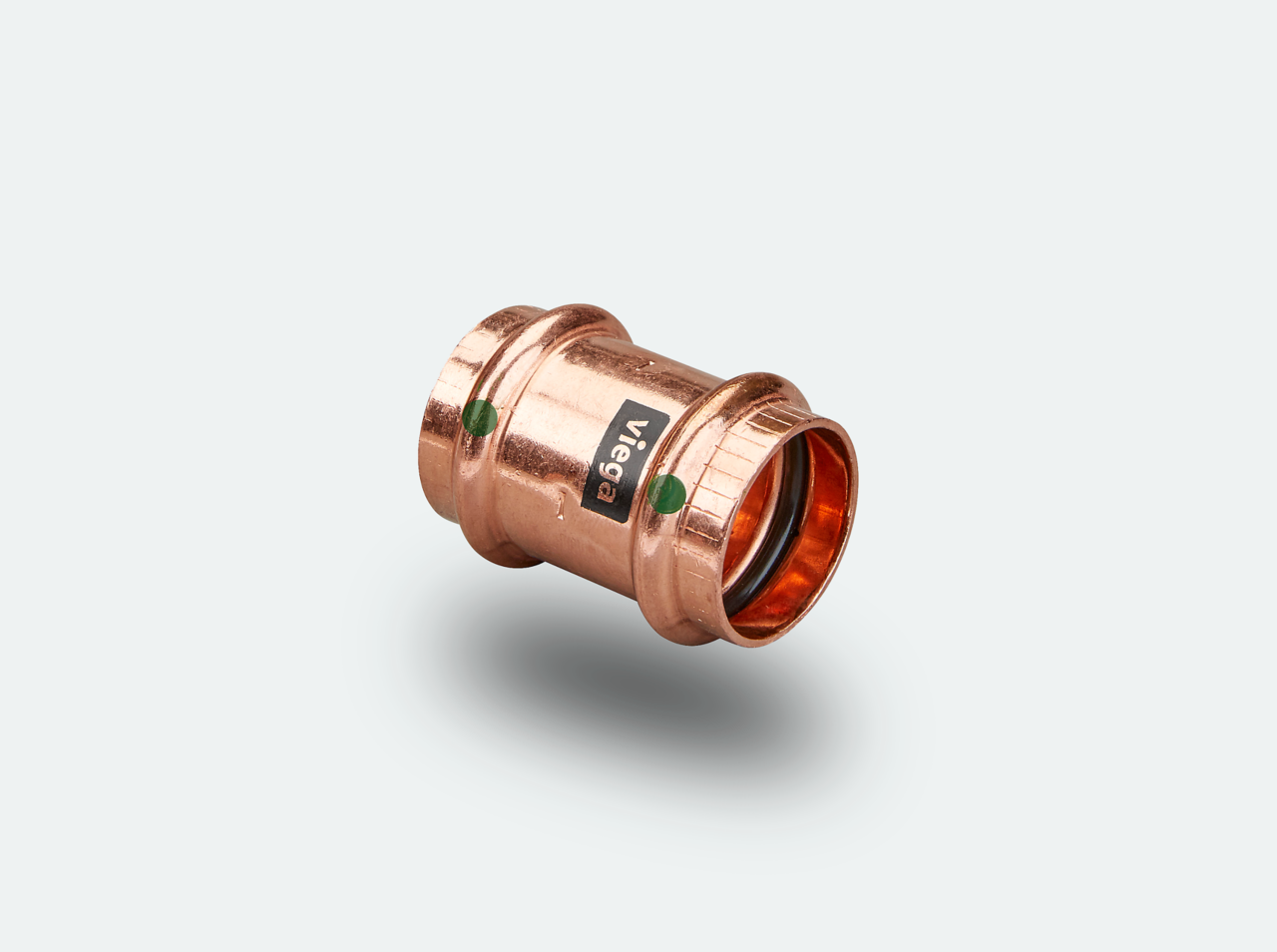

Viega ProPress^® Copper

For use on copper pipe in sizes ½" to 4"

Benefits

More than 400 different fitting configurations
More approvals than any other copper press fitting system
Available with EPDM, FKM and HNBR sealing elements
More than 200 different fitting and valve configurations

Water/Liquids

Hot and Cold Potable Water Test pressure 600 psi
Rainwater/ Graywater
Chilled Water ≤50% Ethylene / Propylene glycol
Hydronic Heating Water9 ≤50% Ethylene / Propylene glycol
Steam Low-pressure
Steam Residential

Fuels/Oils/Lubricants

Ethanol Pure grain alcohol
Lube Oil Petroleum based
Heating Fuel Oil
Diesel Fuel

Gases

Compressed Air     Oil Concentration ≤25 mg/m
Compressed Air     Oil Concentration >25 mg/m
Nitrogen - N2
Carbon Dioxide - CO2    Dry
Carbon Monoxide - CO
Argon - Ar
Ammonia Ammonia environment7
Oxygen - O2     Non-medical Keep free of oil and grease
Hydrogen - H2
Vacuum     Minimum absolute pressure Maximum differential pressure

Special Media

Acetone Liquid

For additional information, please see the approved applications chart. View Viega Approved Applications

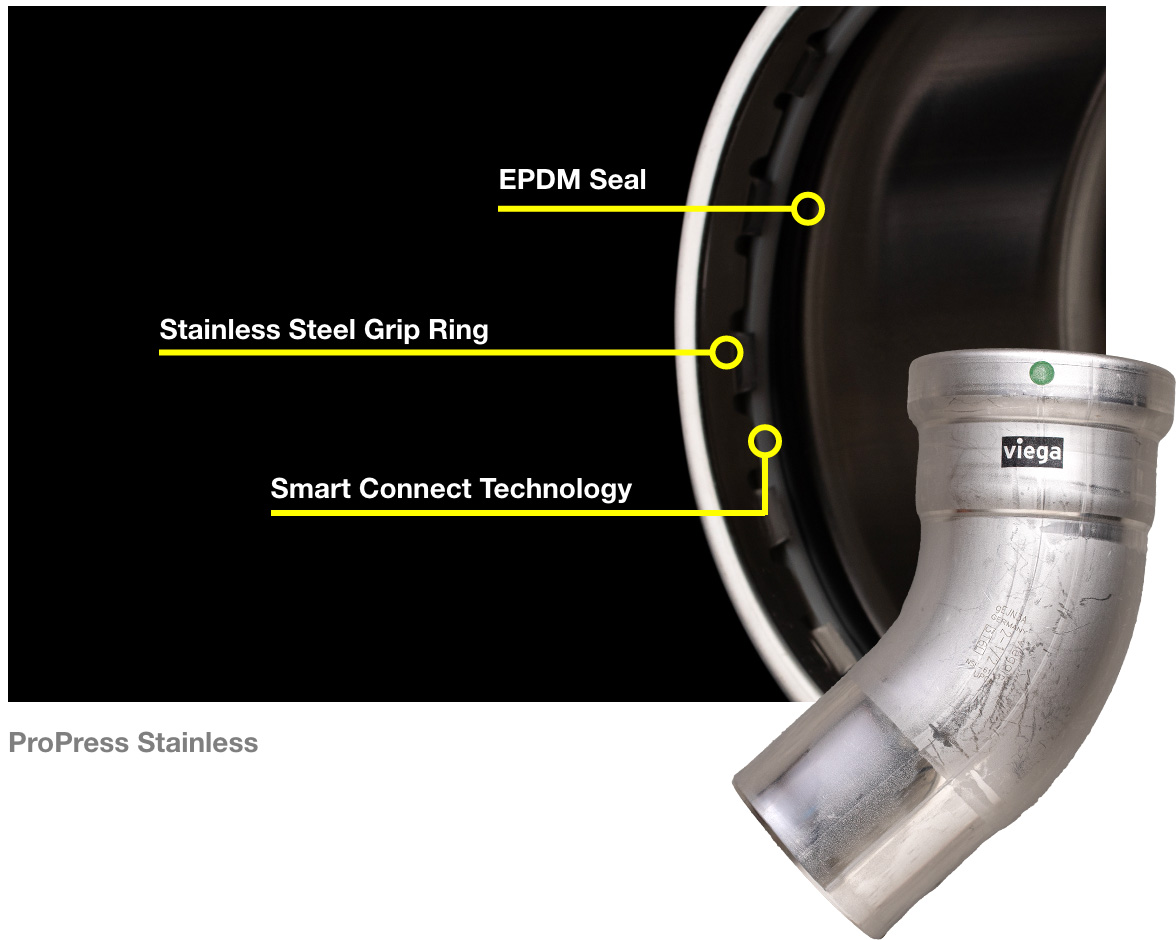

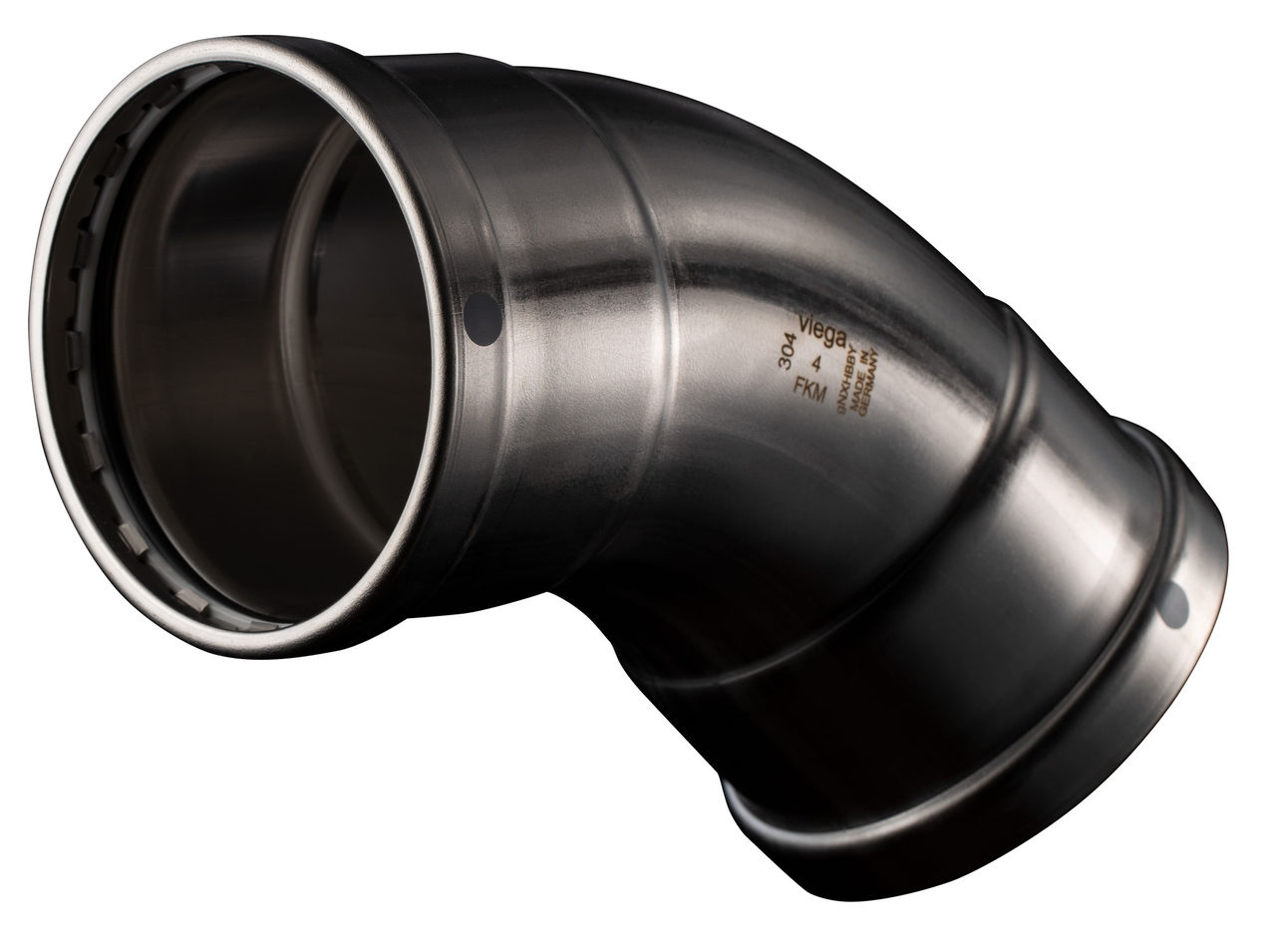

Viega 316 ProPress^®Stainless

For use with 316 ProPress Stainless ECO Tubing

Benefits

More than 350 different fitting configurations
Approved for more than 800 different applications including potable water
Available with EPDM, FKM and HNBR sealing elements

Water/Liquids

Hot and Cold Potable Water Test pressure 600 psi
Rainwater/ Graywater
Chilled Water ≤50% Ethylene / Propylene glycol
Hydronic Heating Water9 ≤50% Ethylene / Propylene glycol
Treated Water Fully desalinated, deionized, deminerlized, distilled(open system)
Reverse Osmosis Water <1 MΩ
Paraffin Wax
Methyl Ethyl Ketone
Isopropyl Alcohol
Nitric Acid Concentration ≤10%
Phosphoric Acid Concentration ≤25%
Fire Sprinkler NFPA 13, 13D, 13R
Steam Residential

Fuels/Oils/Lubricants

Ethanol Pure grain alcohol
Mineral Oil
Lube Oil Petroleum based
Diesel Exhaust Fluid (DEF)
Biodiesel ASTM D6751
Heating Fuel Oil
Diesel Fuel
Kerosene
Gear Oil Lubricant
Automatic Transmission Fluid
Hydraulic Oil
Engine Oil
Engine Coolant
Waste Oil

Gases

Compressed Air     Oil Concentration ≤25 mg/m
Nitrogen - N2
Carbon Dioxide - CO2    Dry
Argon - Ar
Ammonia Anhydrous
Ammonia Ammonia environment7
Oxygen - O2     Non-medical Keep free of oil and grease
Hydrogen - H2
Acetylene     Test pressure 350 psi
Vacuum     Minimum absolute pressure Maximum differential pressure

Special Media

Methanol
Latex Paint
Urea Solution Concentration ≤40%
Caustic Soda Concentration ≤50%
Acetone Liquid

For additional information, please see the approved applications chart. View Viega Approved Applications

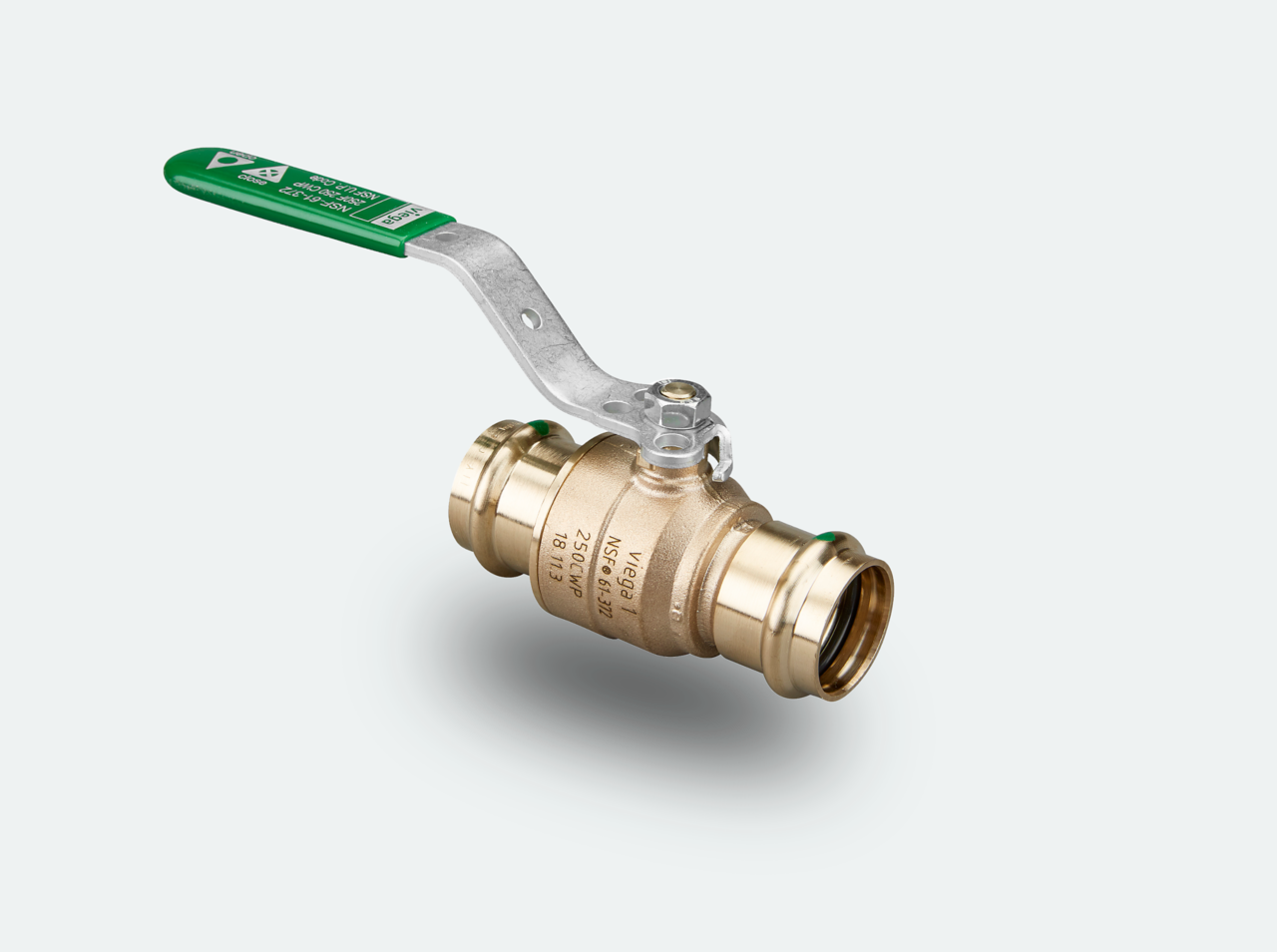

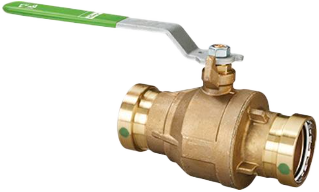

ProPress Valves

For use with copper and stainless CTS pipe

Benefits

Applications include potable water, hydronic systems and more
Variety of valve types including ball, check, butterfly, thermostatic balancing, manual & automatic balancing, strainer and stop valves
Zero Lead bronze, brass and stainless alloys available
Ball Valves including 3-piece configurations
Zero Lead valves certified to NSF/ANSI 61 and 372 (includes Annex G)
Available in sizes ½" to 4"
Automatic balancing

With press technology, contractors can significantly shorten downtime for repairs since there’s no need to entirely drain a system. There are no flames with press fitting pipe, so fire watch is unnecessary.
